| Y-1 Light-Weight Full-Size Yoke |
Benefits:
- 37% lighter than Y6 Yoke
- Sleek ergonomic design to fit comfortably in the operator's hand
- Soft grip for operator's comfort
- Angled body for arm and wrist positioning
- Eylet for hands - free transporting
|
| Current Draw: |
115v 60 Hz |
| Line Current: |
2.2 Amperes |
| Yoke Weight: |
4.56 lbs |
| Leg Capacity: |
0-11" (0-30cm) across poles |
| Cord: |
10 foot cord |
| Warrenty: |
One Year |
| Order # |
Description |
| 623502 |
115V |
|
Y-7 AC/DC Yoke
|
| Current Draw: |
9 amps @ 115v AC 4 amps @ 115v DC
4 amps @230v
|
| Demag: |
Yes |
| Yoke Weight: |
7.4 lbs 115v (3.6 kg) 7.2 lb 220v (3.27 kg)
|
| Leg Capacity: |
0inch -12inch (0-30 cm) across poles |
| Cord: |
9ft (365a.8cm) with grounded plug |
| Other: |
Carrying case and instructions |
| Order # |
Description |
| 43550 |
115V |
| 43560 |
230V |
|
|
MAGNAFLUX Yoke Kits are designed for reliable, one person magnetic particle inspection of ferrous parts when portability is essential. Because the kits are portable and the yokes fit into tight places, they are ideal for in-plant structures and field work. MAGNAFLUX offers a variety of options, so you can select exactly what you need - a yoke only, or a kit that also includes testing materials and accessories.Whether you choose a Y-1 yoke to locate surface cracks or a Y-7 AC/DC yoke to find surface and near-surface defects or a Y-8 battery powered yoke for portability, you always get unsurpassed MAGNAFLUX quality and reliability.

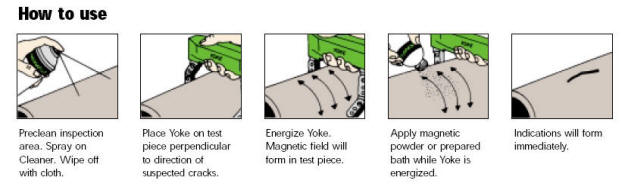

Operation Instructions:
When yoke is connected to a proper power source and energized, an intense longitudinal magnetic field is created in the area between the yoke legs. Any surface cracks will create flux leakages which will attract magnetic particles that form indications that allow for detection.
MAGNAFLUX-Dry Non-Fluorescent Method, used with a yoke, does not require a black light and is more sensitive for finding near-surface defects on components with rough surfaces, such as castings and forgings.
MAGNAGLO-Wet fluorescent Method, used with a yoke and a an ultraviolet black light, can find very fine surface flaws or slightly near-surface discontinuities (with Y-7 or Y-8 yokes only).
Benefits:
- Portable lightweight yokes for one-person inspection in tight places.
- Adjustable legs enable you to inspect many different surface configurations.
- One-Year Warranty
