XT Series Mechanical Holemikes
Fowler
Inch or Metric:
Inch
Metric
Range:
.080-.100"
.100-.120"
.120-.160"
.160-.200"
.200-.250"
.250-.312"
.312-.375"
.375-.500"
.500-.625"
.625-.750"
.750-1"
1-1.375"
1.375-2"
2-2.625"
2.625-3.250"
3.250-4"
4-5"
5-6"
6-7"
7-8"
8-9"
9-10"
10-11"
11-12"
Price:
$1,624.00
$1,542.80
Ship To:
(add new)
yourself
SKU:
52-255-305
FEATURES
CUSTOMER REVIEWS
CUSTOMER QUESTIONS
Inch Models:
Order No.
Range
Grads.
Accur-acy
Meas. Depth
Ring Included
52-255-305
.080-.100"
.00025"
.00015"
.350"
.1000"
52-255-306
.100-.120"
.00025"
.00015"
.350"
.1000"
52-255-307
.120-.160"
.00025"
.00015"
.470"
.1600"
52-255-308
.160-.200"
.00025"
.00015"
.700"
.1600"
52-255-309
.200-.250"
.00025"
.00015"
.700"
.2000"
52-255-310
.250-.312"
.00025"
.00015"
2.28"
.312"
52-255-311
.312-.375"
.00025"
.00015"
2.28"
.312"
52-255-312
.375-.500"
.00025"
.00015"
2.28"
.5"
52-255-313
.500-.625"
.00025"
.00015"
2.44"
.5"
52-255-314
.625-.750"
.00025"
.00015"
2.44"
.75"
52-255-315
.750-1"
.00025"
.00015"
2.60"
.75"
52-255-316
1-1.375"
.00025"
.00015"
2.60"
1.375"
52-255-317
1.375-2"
.00025"
.00015"
3.15"
1.375"
52-255-318
2-2.625"
.00025"
.00015"
3.15"
2.625"
52-255-319
2.625-3.250"
.00025"
.00015"
3.15"
2.625"
52-255-320
3.250-4"
.00025"
.00015"
3.94"
3.25"
52-255-321
4-5"
.00025"
.00020"
4.53"
5.0"
52-255-322
5-6"
.00025"
.00020"
4.53"
5.0"
52-255-323
6-7"
.00025"
.00020"
4.53"
7.0"
52-255-324
7-8"
.00025"
.00020"
4.53"
7.0"
52-255-325
8-9"
.00025"
.00030"
4.65"
9.0"
52-255-326
9-10"
.00025"
.00030"
4.65"
9.0"
52-255-327
10-11"
.00025"
.00035"
4.65"
11.0"
52-255-328
11-12"
.00025"
.00035"
4.65"
11.0"
Metric Models:
Order No.
Range
Grads.
Accur-acy
Meas. Depth
Ring Included
52-255-405
2-2.5mm
.005mm
.004mm
9mm
2.5mm
52-255-406
2.5-3mm
.005mm
.004mm
9mm
2.5mm
52-255-407
3-4mm
.005mm
.004mm
12mm
4mm
52-255-408
4-5mm
.005mm
.004mm
18mm
4mm
52-255-409
5-6mm
.005mm
.004mm
18mm
5mm
52-255-410
6-8mm
.005mm
.004mm
58mm
8mm
52-255-411
8-10mm
.005mm
.004mm
58mm
8mm
52-255-412
10-12.5mm
.005mm
.004mm
58mm
12.5mm
52-255-413
12.5-16mm
.005mm
.004mm
62mm
12.58mm
52-255-414
16-20mm
.005mm
.004mm
62mm
20mm
52-255-415
20-25mm
.005mm
.004mm
66mm
20mm
52-255-416
25-35mm
.005mm
.004mm
66mm
35mm
52-255-417
35-50mm
.005mm
.004mm
80mm
35mm
52-255-418
50-65mm
.005mm
.005mm
80mm
65mm
52-255-419
65-80mm
.005mm
.005mm
80mm
65mm
52-255-420
80-100mm
.005mm
.005mm
100mm
80mm
52-255-421
100-125mm
.005mm
.006mm
115mm
125mm
52-255-422
125-150mm
.005mm
.006mm
115mm
125mm
52-255-423
150-175mm
.005mm
.007mm
115mm
175mm
52-255-424
175-200mm
.005mm
.007mm
115mm
175mm
52-255-425
200-225mm
.005mm
.007mm
118mm
225mm
52-255-426
225-250mm
.005mm
.007mm
118mm
225mm
52-255-427
250-275mm
.005mm
.007mm
118mm
275mm
52-255-428
275-300mm
.005mm
.007mm
118mm
275mm

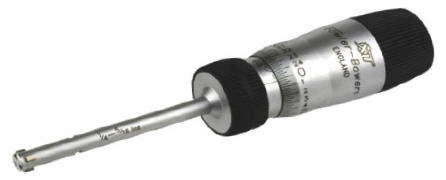

The Fowler/Bowers range of mechanical two and three point bore micrometers are now available as XT extended travel versions between .080"/2mm and 12"/300mm. This allows wide measurement range without the need to interchange anvils.
Special Features:
Graduations 0.00025" (0.005mm)
3-pt contact with tungsten carbide measuring anvils above .5" (12.5mm)
Blind bore measuring above .5" (12.5mm)
Ratchet stop for consistent measuring
Non-removeable anvils
Extensions available for deep measuring
Heads with special anvils available for threads, splines, slots, etc.
Setting rings included in all sets
Includes UKAS certificates for all Holemikes and setting rings
Every gage is individually serialized
Special anvils available
