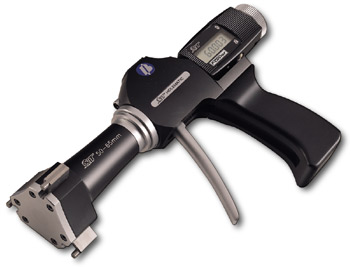

XT Holematic Pistol Grip Sets

Bowers

Set or Individual:
Range:

Price: ~~$6,431.00~~ $6,109.66

Ship To:

SKU:	54-566-009

FEATURESCUSTOMER REVIEWSCUSTOMER QUESTIONS

Order No.	Range	Includes
54-566-009	.080-.250" (2-6 mm)	5 heads, 1 handle, 3 rings
54-566-010	.250-.375" (6-10 mm)	2 heads, 1 handle, 1 rings
54-566-020	.375-.750" (10-20 mm)	3 heads, 1 handle, 2 rings
54-566-050	.750-2" (20-50 mm)	3 heads, 1 handle, 2 rings
54-566-100	2-4" (50-100 mm)	3 heads, 1 handle, 2 rings
54-566-105	4-6" (100-150 mm)	2 heads, 1 handle, 2 rings
54-566-110	6-8" (150-200 mm)	2 heads, 1 handle, 1 rings
54-566-200	4-8" (100-200 mm)	4 heads, 1 handle, 2 rings
54-566-210	.750-4" (20-100 mm)	6 heads, 1 handle, 4 rings
54-566-620	.250-.750" (6-20 mm)	5 heads, 1 handle, 3 rings

Fowler/Bowers XT Holematic Pistol Grip range of bore gages offer extended travel with fixed anvils. The pistol grip handle incorporates a constant measuring pressure to eliminate operator "feel."

Special Features

Simple, two button operation
Large easy-to-read swivel display
Self-centering heads
RS-232C output
Two preset memories
Non-removeable anvils
All gages and heads are serialized
Resolution: .00005" (.001 mm)
Range .080"-12" (2-300 mm)
Tungsten carbide measuring faces on all 3-point heads from .5" (12.5 mm) and up
Setting rings included in all sets
Includes UKAS certificates for all pistol grips and rings

Individual Pistol Grips Available:

Order No.	Range	Accuracy	Depth
54-566-701	.080-.100" (2-2.5 mm)	.00015" (0.004 mm)	.350" (9mm)
54-566-702	.100-.120" (2.5-3 mm)	.00015" (0.004 mm)	.350" (9mm)
54-566-703	.120-.160" (3-4 mm)	.00015" (0.004 mm)	.470" (12mm)
54-566-704	.160-.200" (4-5 mm)	.00015" (0.004 mm)	.700" (18mm)
54-566-705	.200-.250" (5-6 mm)	.00015" (0.004 mm)	.700" (18mm)
54-566-706	.250-.312" (6-8 mm)	.00015" (0.004 mm)	2.28" (58mm)
54-566-708	.312-.375" (8-10 mm)	.00015" (0.004 mm)	2.28" (58mm)
54-566-710	.375-.500" (10-12.5 mm)	.00015" (0.004 mm)	2.28" (58mm)
54-566-712	.500-.625" (12.5-16 mm)	.00015" (0.004 mm)	2.44" (62mm)
54-566-716	.625-.750" (16-20 mm)	.00015" (0.004 mm)	2.44" (62mm)
54-566-720	.750-1" (20-25 mm)	.00015" (0.004 mm)	2.62" (66mm)
54-566-725	1-1.375" (25-35 mm)	.00015" (0.004 mm)	2.62" (66mm)
54-566-735	1.375-2" (35-50 mm)	.00015" (0.004 mm)	3.15" (80mm)
54-566-740	2-2.625" (50-65 mm)	.0002" (0.005 mm)	3.15" (80mm)
54-566-745	2.625-3.250" (65-80 mm)	.0002" (0.005 mm)	3.15" (80mm)
54-566-750	3.250-4" (80-100 mm)	.0002" (0.005 mm)	3.35" (85mm)
54-566-800	4-5" (100-125 mm)	.00025" (0.006 mm)	3.94" (100mm)
54-566-825	5-6" (125-150 mm)	.00025" (0.006 mm)	3.94" (100mm)
54-566-850	6-7" (150-175 mm)	.0003" (0.007 mm)	3.94" (100mm)
54-566-875	7-8" (175-200 mm)	.0003" (0.007 mm)	3.94" (100mm)
54-566-876	8-9" (200-225 mm)	.0003" (0.008 mm)	3.94" (100mm)
54-566-877	9-10" (225-250 mm)	.0003" (0.008 mm)	4.05" (103mm)
54-566-878	10-11" (250-275 mm)	.00035" (0.009 mm)	4.05" (103mm)
54-566-879	11-12" (275-300 mm)	.00035" (0.009 mm)	4.05" (103mm)
