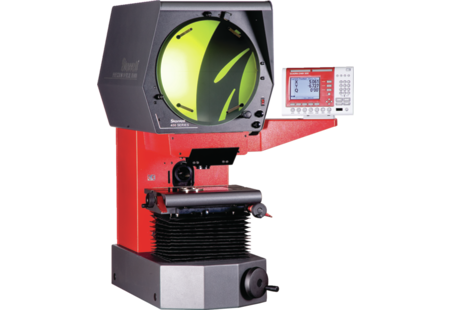

Starrett VB400 with Quadra-Chek

VB400 Bench Top

VB400 with Quadra-Chek:

Price: $17,341.00

Ship To:

SKU:

VB400-121

FEATURESCUSTOMER REVIEWSCUSTOMER QUESTIONSMODELS W/ QUADRA-CHEK DROOPTIONS & ACCESSORIESPRICE DETAILS

• Fully usable 16” diameter hooded screen with overlay clips.

• Digital protractor for accurate angular measurements (1 minute resolutions) via Q axis on readout.

• Precision coordinate work stage with 16” x 9” top plate.

• 22-lb.load capacity with negligible deflection and 50 lb. maximum capacity.

• 8” horizontal travel

• 4” vertical travel.

• 4” focus travel.

• LED profile and surface illumination

• Diopter for high magnification lenses

• Measurement by means of a linear encoder (glass scale) on both X and Y axes.

• Optional on-axis surface illumination (requires lens attachment)

There are currently no reviews of this product.
Submit a Review

There are currently no questions about this product.
Ask a Question

VB400-121

Comparator utilizes compact and precise digital readout for X, Y and Q measurements. Ideal for displaying linear and angular dimensions. Capable of absolute/incremental measuring, “Q” axis reads out in Angular coordinates. An optional Footswitch is available.

VB400-221

All the features of the VB400-121 with even more measuring capability. The VB400-221 includes the ability to measure 2D features such as diameters, radius, angle, lines and point features. Part skewing makes setting up quick and easy. Programs can be recorded to speed up the measurement of multiple parts.

VB400-221E

All the features of the VB400-221 with added Optical Edge Detection

30Z110 10X Magnification Lens with 10X Beam Splitter $1129.00

30Z120 20X Magnification Lens with 20X Beam Splitter $1129.00

30Z125 25X Magnification Lens with 25X Beam Splitter $1318.00

30Z150 50X Magnification Lens with 50X Beam Splitter $1615.00

6H000 P-11807 Precision Centers and Vees $808.00

3V000 P-11808 Helix Center Support Fixture for 200mm x 100mm Stage $3339.00

6U003 P-11809 Precision Rotary Work Stage w/ 360 degree grad scale

& vernier segment (200mm x 100mm stage) $731.00

P-10102 Cabinet Stand with Drawer, 23" High $855.00

P-10485 Canopy and Curtains (For use with 23" cabinet. Cabinet not

included in price) $2370.00

Option	SKU	Price
VB400-121	VB400-121	$17,341.00
VB400-221	VB400-221	$18,260.00
VB400-221E	VB400-221E	$20,567.00
