Starrett Motorized Force Stands

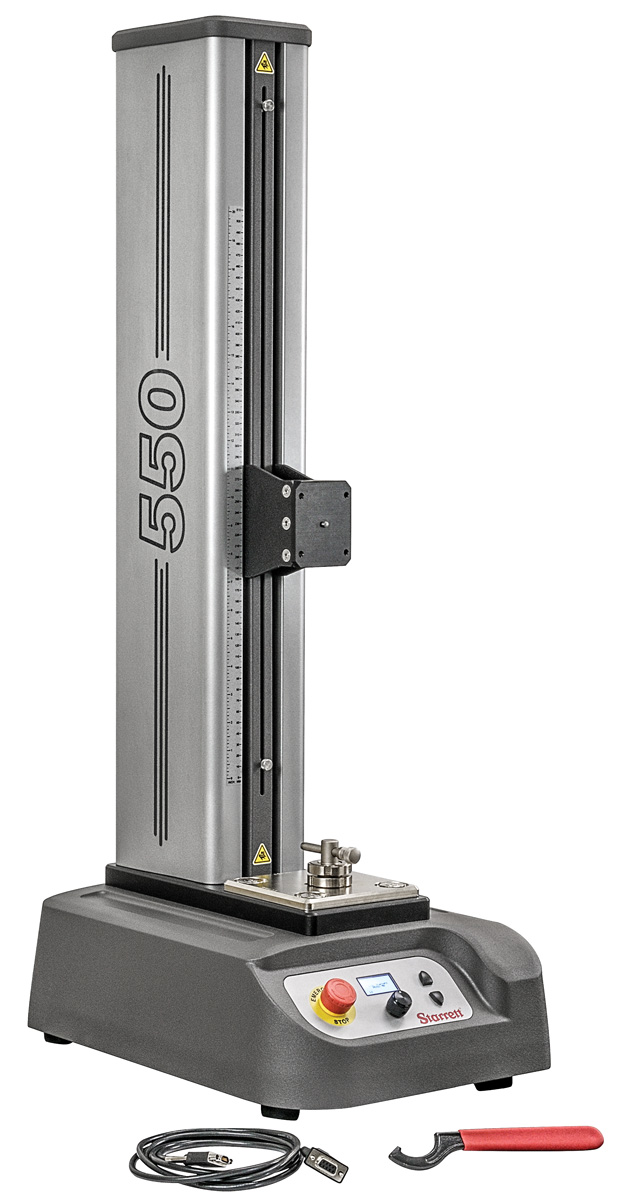

Starrett FMM Digital Force Testing Frames
|
The Starrett FMM represents our most-basic, computer-based force testing solution. Optimized for production and quality control testing, they are designed to be easy to setup, operate and maintain.
- Ideal for tension, compression, flexural, cyclic, shear, and friction applications
- Use with L1 software and 2-in-1 tablet PC or with DFC and DFG force gages
- Multiple, Easy-to-Use Operating Modes; manual, automatic, continuous, gage control, or software control
- Easily perform load, distance, beak, cyclic, constant load and distance testing
- Reference distance travel ruler
- Compact design is ideal for small work space and for lean manufacturing environments
- Adjustable, magnetic travel limits
- Speed selection dial with high resolution display
- Conforms to All Relevant European Standards and Carries CE Mark
There are currently no reviews of this
product.
Submit a Review
There are currently no questions about this
product.
Ask a Question
- Capacity: 110lbf, 500N, 50kg
- Crosshead Travel: 20in, 508mm
- Vertical Test Space: 22in, 559mm
- Travel - Position Accuracy: Better than 0.0008in, 0.02mm
- Travel - Resolution: .001in, .025mm
- Speed - Minimum: .002in/min, .05mm/min
- Speed - Maximum: 40in/min, 1016mm/min
- Speed - Maximum @ Full Capacity: 40in/min, 1016mm/min
- Speed - Accuarcy: Better than 0.1% of test speed
- Cycling - Maximum Number: Counts 99,999
- Cycling - Maximum Duration: 27 hours
- Load Hold - Maximum Duration: 27 hours
- Test Frame Communications: USB 2.0, RS-232
- Input/Output Channels: 0 - 24Vdc (independent, configurable)
- Power: +10% 110, 120, 220, 230, 240, 50/60 Hz
- Electrical Phase: Single Phase Voltage (Vac)
- Operating Temperature: +40 to +110°F, +5 to +43°C
- Humidity: 10 to 90%, non-condensing
- Height: 37in, 940mm
- Depth: 16.5in, 419mm
- Width: 11.5in, 292mm
- Throat Distance: 3.9in, 100mm
- CE Compliant: meets all relevant CE standards for saftey, immunity, noise
| Option | SKU | Price |
| FMM-110 | 73135 | $3,995.00
$3,555.55 |
| FMM-330 | 73137 | $4,495.00
$4,000.55 |
| FMM-550 | 73139 | $4,995.00
$4,445.55 |
| FMM-110X | 73136 | $4,120.00
$3,666.80 |
| FMM-330X | 73138 | $4,620.00
$4,111.80 |
| FMM-550X | 73140 | $5,120.00
$4,556.80 |
|
|
|
|
