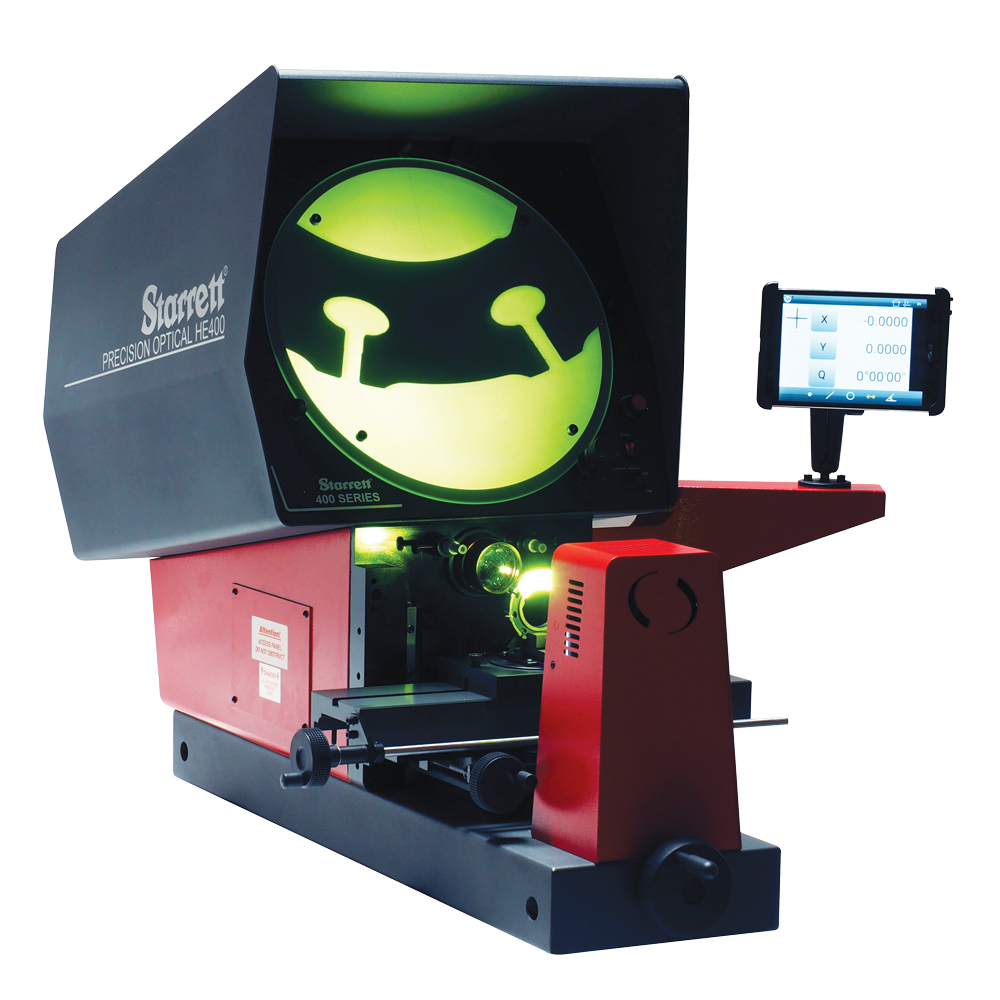

Starrett HE400 with Metlogix

HE400 Bench Top

HE400 with MetLogix software with 10x Mag Lens:

Price: $9,320.00

Ship To:

SKU:	HE400-M1-SP

FEATURESCUSTOMER REVIEWSCUSTOMER QUESTIONSMODELS W/ METLOGIX SOFTWAREOPTIONS & ACCESSORIESPRICE DETAILS

Starrett Optical Comparator including a 10X lens

FEATURES:

• Redesigned for improved performance

• All metal construction

• 16" diameter screen with overlay clips

• Digital protractor for accurate angular measurements (1 minute

resolutions) via Q axis on readout

• Precision work stage with 18.75 x 4.74" top plate with machined slot for easy

fixturing

• 15.4lb load capacity and 55lb maximum capacity

• 10" horizontal travel by manual fine adjustment with quick release

mechanism on X-axis

• 4" vertical travel

• 1-1/8" focus travel

• LED profile illumination

• LED fiber optic surface illumination

• Fully retractable flexible fiber optic surface illumination

• Single bayonet-style interchangeable lens mount (10x lens included)

• Collimating condenser with yellow/green filter and provision to mount

further accessories

• Measurement by means of a linear encoder (glass scale) with .5μ on

both X and Y axes

• Fine adjustment on all axes

WARRANTY:

Starrett Kinemetric Engineering, Inc. products carry a one-year (from date of purchase) warranty against defects in material and workmanship (parts and labor) subject to factory inspection.

Parts not manufactured by the Starrett Kinemetric Engineering, Inc. (Computation System) carry the original manufacturers' warranty.

There are currently no reviews of this product.
Submit a Review

There are currently no questions about this product.
Ask a Question

HE400-M1

HE400-M1 includes the ability to measure 2D geometric features such as diameters, radius, angle, lines and point features. M1 software provides an interactive user interface and part skewing for easy setup. Includes tablet with Android operating system.

HE400-M1E

All the features of the HE400-M1 with added Optical Edge Detection.

HE400-M2

HE400-M2 includes the ability to measure 2D features such as diameters, radius, angle, lines and point features. M2 software provides an interactive 2D part view and part skewing for easy setup. Programs can be recorded to speed up the measurement of multiple parts.

HE400-M2E

All the features of the HE400-M2 with added Optical Edge Detection.

Order No.

7E010 10X Magnification Lens $ 949.00

7E020 20X Magnification Lens $ 949.00

7E025 25X Magnification Lens $ 1,246.00

7E031.25 31.25X Magnification Lens $ 1,246.00

7E050 50X Magnification Lens $ 1,246.00

7E100 100X Magnification Lens $ 1,246.00

7T001 Iris Diaphragm $ 208.00

4H002 Precision Fixed Vise - 1-1/4" Capacity $374.00

4H003 Precision Rotary Vise – 1-1/4” Capacity $ 597.00

4H004 Vee Block on Rotary Base $ 608.00

7P000 Precision Centers & Vees $ 697.00

7U000 Glass Plate Work Holder $ 593.00

P-10095 Cabinet Stand 32” High $ 887.00

P-10102 Cabinet Stand 23” High $ 855.00

FO07 Surface Illumination Bulb 12V, 100W $ 39.00

LH14 Profile Bulb 12V, 100W $ 29.00

P-10485 Canopy and Curtains $ 2370.00

Option	SKU	Price
M1 software	HE400-M1-SP	$9,320.00
M1E software with Optical Edge Detection	HE400-M1E-SP	$10,960.00
M2 software	HE400-M2-SP	$12,716.00
M2E software with Optical Edge Detection	HE400-M2E-SP	$14,622.00
