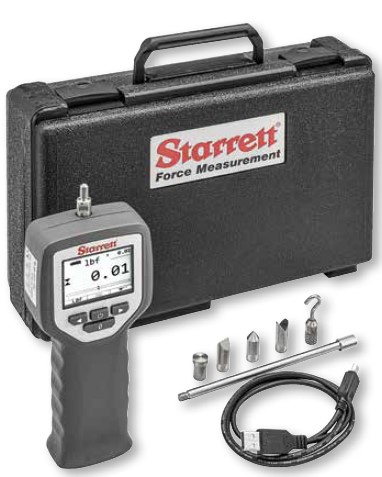

Starrett Force Gages

DFC Series

Starrett Digital Force Gage:

Price: ~~$1,145.00~~ $1,019.05

Ship To:

SKU:

73123

FEATURESCUSTOMER REVIEWSCUSTOMER QUESTIONSTECH SPECSCAPACITYPRICE DETAILS

The DFC is a revolutionary concept for force measurement using a handheld force gage. The DFC may be used as a high-accuracy handheld
force gage or as a digital controller for use with the FMM Digital Force Testers. The DFC can serve as a universal interface where you set up your tests and where you configure load limits, distance limits, break limits, crosshead travel direction, crosshead speed and more. The DFC features a measurement accuracy of 0.1% full scale with internal data sampling at 25kHz. Display resolution is 10,000:1. The DFC features Bluetooth®, USB and RS-232 communications plus digital I/O.

There are currently no reviews of this product.
Submit a Review

There are currently no questions about this product.
Ask a Question

Specification DFC Series

Accuracy, Full Scale 0.1%

Data Sampling (Hz) 25,000

Display Resolution 10,000:1

Safe Overload, Full Scale 200%

Maximum Tare 10%

Communications

Bluetooth® Yes

USB 2.0 Yes

RS-232 Yes

Digital I/O 2 channels

Memory, saved results max. 99

Operating Mode

Machine Control Yes

Real Time Yes

Peak Compression Yes

Peak Tension Yes

Load Limit Yes

Break Limit Yes

Load Average Yes

Load-Time Average Yes

Cyclic Count, Max. 99,999

Cyclic Duration, Max. 27 Hrs.

Hold Duration, Max. 27 Hrs.

Coefficient of Friction Yes

Power, Environmental

Battery Type Lithium Ion

Battery Life, @ 20% brightness >30 hours

Charge Time, using 110/240V <3 hours

Display (OLED) 320 x 240

Operating Temperature 40°F to 110°F (4°C to 43°C)

Thread, for adapters (Metric) M6, M10

Instrument Weight (approx.) 3 lbs (1.36 kgs)

CE Compliance

EN61010-1

Safety for Electrical Equipment

EN61000-6-3

EMC Generic Emissions

EN61000-6-1

EMC Generic Immunity

NOTE:

Machine control is exclusive to the Starrett DFC. When connected to the Starrett FMM digital force tester, configuration of force gage and tester is performed through the gage.

DFC Series - Advanced Force Controller

Load Capacity Full Scale Deflection Thread Accessory

Model N KGF LBF OZF GF mm inch mm Kit

DFC-2 10 1 2 32 900 0.33 0.013 M6 x 1-6H SPK-FG-A

DFC-5 25 2 5 80 2200 0.18 0.007 M6 x 1-6H SPK-FG-A

DFC-10 50 5 10 160 5000 0.15 0.006 M6 x 1-6H SPK-FG-S

DFC-20 100 10 20 320 9000 0.20 0.008 M6 x 1-6H SPK-FG-S

DFC-50 250 25 50 800 23,000 0.39 0.015 M6 x 1-6H SPK-FG-S

DFC-100 500 50 110 1600 45,000 0.60 0.024 M6 x 1-6H SPK-FG-S

DFC-200 1000 100 225 - - 0.54 0.021 M6 x 1-6H SPK-FG-M

DFC-500 2500 250 550 - - 0.70 0.028 M10 x 1.5-5H SPK-FG-M

NOTES Load measurement accuracy is ±0.1% of load cell capacity. Display resolution is 10,000:1.

Option	SKU	Price
DFC-2	73123	~~$1,145.00~~ $1,019.05
DFC-5	73126	~~$1,145.00~~ $1,019.05
DFC-10	73121	~~$1,145.00~~ $1,019.05
DFC-20	73124	~~$1,145.00~~ $1,019.05
DFC-50	73127	~~$1,145.00~~ $1,019.05
DFC-100	73122	~~$1,145.00~~ $1,019.05
DFC-200	73125	~~$1,195.00~~ $1,063.55
DFC-500	73128	~~$1,195.00~~ $1,063.55
