Starrett 1175 Series 9.5-150mm Range Groove Gages
<
Previous Product
Next Product
>
Starrett 1175 Series 9.5-150mm Range Groove Gages
Starrett
Price:
$2,267.00
Ship To:
(add new)
yourself
SKU:
1175MZ
FEATURES
CUSTOMER REVIEWS
CUSTOMER QUESTIONS

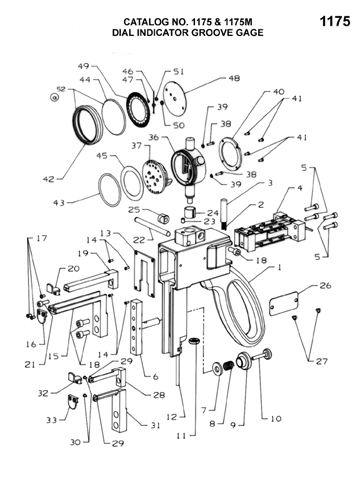

This lightweight gage is used for in-process or bench inspection of oil grooves, snap ring retainer grooves, "O" ring seat retainer grooves and similar internal recesses. It is also useful for checking bore dimensions and testing for taper, bell-mouth and out-of-roundness.
The movable, sensitive gaging contact has a 1/2" (12.7mm) retractable range and transfers the measurement through a linear, friction-free transfer mechanism to the dial indicator. The lower reference jaw is fixed and supports the entire weight of the gage and the operator`s hands, thus preventing incorrect gaging pressure and false readings.
The reference jaw can be mounted in two positions on the range adjusting bar. The bar itself is also adjustable for greater or lesser range. A fine adjustment screw and a lock are also provided.
This gage has the following features:
Supplied with two sets of jaws, both readily interchangeable
Three sets of contacts are furnished (Styles 1-10, 2-10, 2-20) that can be attached to the ends of the jaws without replacing the entire jaw. Contacts have flush ends so that grooves at the bottom of blind holes can be gaged. The contacts are hardened steel with a hard chrome finish for long life
Gage can be set with gage blocks or other methods such as micrometers, vernier calipers and ring gages.
Special jaws for 4" and 6" (100mm and 150mm) gaging depths, a diameter range extension bar from 6-12" (150-300mm), dial indicators graduated in .001", or any special modification of gaging contacts and jaws, are also available by request through our Special Order Department.
Contact Set Specifications:
Style 1-10 is for the smaller jaws and can enter a .375" (9.5mm) bore. Styles 2-10 and 2-20 are used on the larger jaws to get the range up to 6" (150mm).
Contact Set
Part No.
Will Enter Minimum Bore
Maximum Groove I.D.
A
B
Upper
Lower
Inch
mm
Inch
mm
Inch
mm
Inch
mm
Style 1-10
PT30917
PT30917
.375"
9.5
3.00"
75
.100"
2.5
.024"
0.6
Style 2-10
PT30918
PT30919
.690"
17.5
5.00"
125
.140"
3.6
.034"
0.8
Style 2-20
PT30920
PT30921
1.00"
25
6.00"
150
.265"
6.7
.051"
1.3
