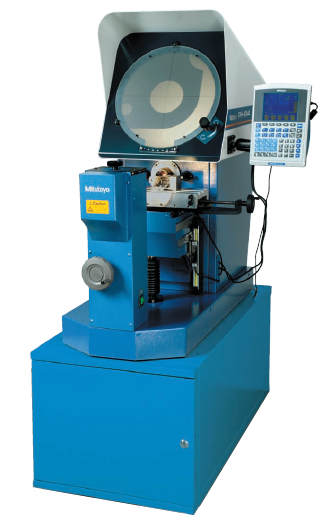

PH-A14 Horizontal Profile Projector

PH-A14 Horizontal Profile Projector

Features:

• Mitutoyo's lens tecnology and workmanship combine to provide a bright, crisp image for error free inspection.
• The PH-A14's generous x, y workstage travel (8"x4") provides users with ample range to cover application needs.
• New location of the Y-axis handle improves ease of operation.
• The workstage provides high accuracy and can handle a workload of up to 100 lbs.
• Fiber illuminator is standard accessory.

8' (203.2mm)
16'x6" (407x153mm)
Linear Scale
.00005" (0.001mm)*1

4' (101.6mm)
Linear Scale
.00005" (0.001mm)*1

2" (50.8mm)

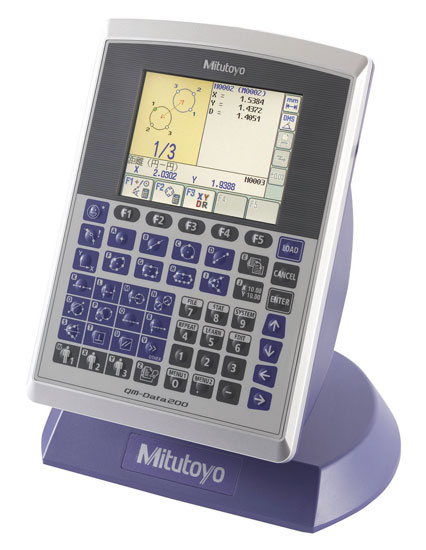

•  Various graphic displats on the large colored LCD screen for easy measurement operations.
• One-key operation for combined measurements that are often used (circle-circle distance, etc.)
• The AI measurement function (automatic identification of measuring item) eliminates switching between the measurement command keys.
• Equipped with the measurement procedure teaching function and the measuring position navigation in Repeat mode.
• The user menu function allows user to register measurement commands or part programs to create his/her own menu.
• Tolerance zone measurement of data processing result and various statistical processing for each item are available.
• Measurement result output to "MS-Excel" in spreadsheet (CSV) format.
• The measurement procedure and measurement result can be saved, using the USB drive.
• Two models are available: a stand-alone type with tilt system and a flexible arm type that can be mounted on a Profile Projector.
