Motorized Probe Heads

Renishaw

Model Number:

Price: $18,551.00

Ship To:

SKU:

PH10T

FEATURESCUSTOMER REVIEWSCUSTOMER QUESTIONS

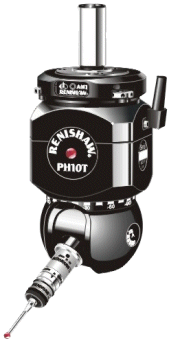

PH10T

Motorized probe head with M8 probe connection and high torque.

The new PH10T motorized probe head allows complete, rapid, and repeatable inspection of most complex components with minimum human intervention. Full orientation of your TP2, TP6, TP20 or TP200 probe between any of 720 positions, under manual or program control, turns your 3 axis CMM into a 5 axis machine.

Specifications:

Weight (g)	645 g
Probe Mounting	M8 thread
Total No. of Positions	720
Dimensions	Length 102 mm excluding AM1, width 62 mm
Cycle Time (90° move)	3.5 seconds
A-axis indexing	0° to 105° in 7.5 steps
B-axis indexing	0° to ±180° in 7.5 steps
Repeatability of position	0.5 μm (0.00002 in) specified at a distance of 62 mm (2.44 in)

Part Number: A-1025-1520

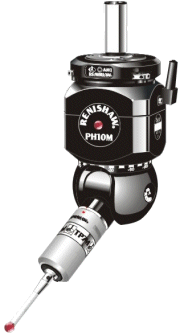

PH10M

Motorised probe head with Autochange capability, high torque and multiwire capability.

The PH10M motorized probe head has been developed for the new generation of contact and non-contact scanning probes. It has three times the torque of PH10T, allowing probe extension bars up to 300 mm long to be used. The PH10M has an autojoint mounting.

Specifications:

Weight (g)	645 g
Probe Mounting	Autojoint
Total No. of Positions	720
Dimensions	Length 102 mm excluding AM1, width 62 mm
Cycle Time (90° move)	3.5 seconds
A-axis indexing	0° to 105° in 7.5 steps
B-axis indexing	0° to ±180° in 7.5 steps
Repeatability of position	0.5 μm (0.00002 in) specified at a distance of 62 mm (2.44 in)

Part Number: A-1025-0050

PH10MQ

In-quill mounting motorised probe head with high torque and multiwire capability.

The PH10MQ can be mounted vertically inside the CMM's quill for a greater working envelope by increasing the Z axis travel. A motorised head gives a DCC machine the added capability of probe reorientation, allowing the probe to address the surface at the best angle to get the most accurate result.

Specifications:

Weight (g)	730 g
Probe Mounting	Autojoint
Total No. of Positions	720
Dimensions	Length 73 mm, width 80 mm
Cycle Time (90° move)	3.5 seconds
A-axis indexing	0° to 105° in 7.5 steps
B-axis indexing	0° to ±180° in 7.5 steps
Repeatability of position	0.5 μm (0.00002 in) specified at a distance of 62 mm (2.44 in)

Part Number: A-1036-0001
