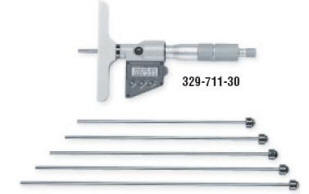

Mitutoyo 329 Series

Features:

• Preset capability. Set any desired measurement on the display and recall that measurement.
• Instant in/mm conversion
• Measurement hold key
• Zero-Set key allows for setting zero measurement at any point along spindle. Each unit comes complete with a battery (offers 6 months of life under normal use), key spanner, other adjusting wrenches, fitted carrying case, manual.
• SPC output provided.
• Data Send button for transmitting readings to SPC systems.
• Measuring force: 6–10N
• Locking clamp.
• Runs off single SR44 battery.
• Automatic power-off after 20 min. idle time.
• Flatness of reference face (bottom face of base): .00008" for 4" base
• Flatness of measuring face of rod: .000012"/0.3µm
• Parallelism between reference face and measuring face: .00016" + .00004" x ( )/(4 + L/50)µm (*truncated after decimal point.) L = maximum measuring length
• Zero point error of rod: ±(.00008" + .00005" x )/±(2 + L/75)µm (*truncated after decimal point.) L = maximum measuring length
• Micrometer Head Accuracy: ±.00012"(±3µm)
