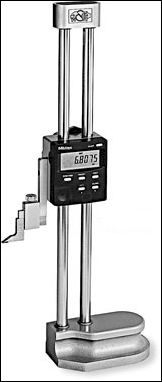

Mitutoyo 192 Series

Mitutoyo

Order Number:

Price: ~~$1,657.00~~ $1,574.15

Ship To:

SKU:	192-670-10

Technical Specifications:

Inch/Metric


Order No.	192-670	192-671	192-672	192-673
Measuring Range	0–12" 0–300mm	0–18" 0–450mm	0–24" 0–600mm	0–40" 0–1000mm
Resolution	.0005"/0.01mm
Accuracy (20°C)	±.001"	±.0015"		±.0025"
Quantizing Error	±1 count
Response Speed	19.69"/s (500mm/s)
Power Supply	One CR2032 Lithium cell No.05SAA217
Mass	14.33 lbs	19.18 lbs	20.94 lbs	43.65 lbs
Standard Accessories	Scriber 905201 Scriber Clamp 901385 One CR2032 Lithium cell 05SAA217
Data output	Digimatic code output.
Optional Accessories	Two-directional Touch Probe (192-008) Measuring force 0.4N
For SPC output order Connecting Cable No. 905338 (1m) or 905409 (2m).

Features:

Two measuring modes, ABS (absolute) and INC
(incremental), for increased inspection efficiency.
Rigid construction ensures repeatable measurements.
Bi-directional touch signal probe for improved efficiency
and reliability of measurement. (192-008)
Display: LCD, Height .394", 6 digits and a minus sign (-).
Functions include: Zero/ABS setting (ABS and INC
modes), Origin restoration, Presetting (ABS and INC
modes), Preset value memory (ABS mode), Data hold,
Inch/mm conversion, Coarse/Fine Feed switching,
Counting direction, Error alarm, Low battery alarm.
Provided with a data output port for connection with the
SPC system.
Standard long scriber (5.90") carbide-tipped.On/Off switch
Mode Switch (Switches Inch/Metric switch between preset and touch probe dia. compensation).
Zero/ABS switch
Data/Hold switch
Counting Direction switch
Product Brochure

Series 192

Height Gage
