METRIC Starrett Test Indicator

Millimeter Reading

(16mm)

(2mm)

(20mm)

(2mm)

*Attachments include Dovetail body clamp (PT224929), tool post holder (PT11770A), swivel post snug with dovetail indicator clamp (PT224828), snug and rod unit(Inch:PT22430, or Millimeter: PT27171)

**Includes redemption card for Standard Letter of Certification (SLC)

Dial Test Indicators with Dovetail Mounts

No. 708M Series .02mm

No. 709 Series .060inch

No. 709M Series 0.8mm

• Angled head for better reading position
• Large 1 3/8" (35 mm) dial diameter
• Revolution count hand on Nos. 708B and 709B models for easy reading

Accuracy Features:

• Precision gear-driven design with smooth, jeweled movement
• Meet or exceed ISO accuracy specification
• For extreme accuracy we recommend positioning the lever contact so that it is approximately 15° from being horizontal with the work piece


Versatility Features:

• Three dovetail positioning mounts work with existing test indicator accessories

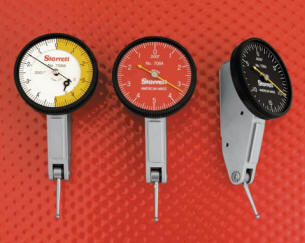

• Inch reading indicators are available with easy-to-read, shaded white, solid red, or solid black dials - millimeter reading indicators with solid yellow dials
• Contact point reverses automatically, always maintaining clockwise hand rotation
• Narrow body for in reach ability
• Satin chrome finish for durability
• Models with twice the range of ordinary types
• Long carbide contacts 13/16" (20 mm) are furnished as standard on most indicators. Exceptions are the contacts for the Nos. 709ALZ and 709ALCZ, which are 1 23/64" (34 mm) long; and Nos. 709MALZ and 709MALCZ, which are 1 5/64" (28 mm)
• Contact points with other ball diameters also available individually, as listed
• Contacts are frictionally adjustable and replaceable
• Indicators are furnished in a deluxe fitted case.
