METRIC
|
DESCRIPTION
|
CATALOG
NO.
|
EDP
|
|
0-75mm Range,
63.5mm Base, 3 Rods, Ratchet Stop, Lock Nut, Case
|
440MZ-75RL
|
52116
|
|
0-150mm Range,
63.5mm Base, 6 Rods, Ratchet Stop, Lock Nut, Case
|
440MZ-150RL
|
52120
|
|
0-225mm Range,
63.5mm Base, 9 Rods, Ratchet Stop, Lock Nut, Case
|
440MZ-225RL
|
52124
|
|
0-75mm Range, 75mm
Base, 3 Rods, Ratchet Stop, Lock Nut, Case
|
445MAZ-75RL
|
52209
|
|
0-150mm Range, 75mm
Base, 6 Rods, Ratchet Stop, Lock Nut, Case
|
445MAZ-150RL
|
52213
|
|
0-225mm Range, 75mm
Base, 9 Rods, Ratchet Stop, Lock Nut, Case
|
445MAZ-225RL
|
52217
|
|
0-75mm Range, 100mm
Base, 3 Rods, Ratchet Stop, Lock Nut, Case
|
445MBZ-75RL
|
52221
|
|
0-150mm Range,
100mm Base, 6 Rods, Ratchet Stop, Lock Nut, Case
|
445MBZ-150RL
|
52225
|
|
0-225mm Range,
100mm Base, 9 Rods, Ratchet Stop, Lock Nut, Case
|
445MBZ-225RL
|
52229
|
|
0-75mm Range, 150mm
Base, 3 Rods, Ratchet Stop, Lock Nut, Case
|
445MDZ-75RL
|
52245
|
|
0-150mm Range,
150mm Base, 6 Rods, Ratchet Stop, Lock Nut, Case
|
445MDZ-150RL
|
52249
|
|
0-225mm Range,
150mm Base, 9 Rods, Ratchet Stop, Lock Nut, Case
|
445MDZ-225RL
|
52253
|
 |

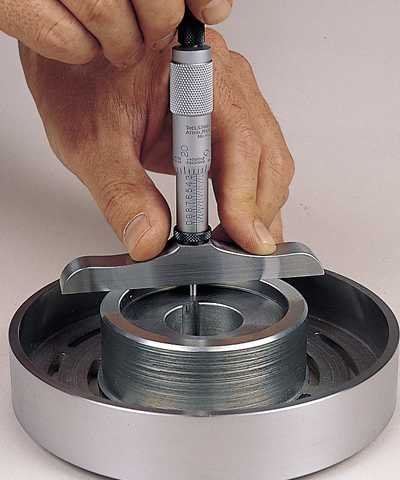

The Depths of holes, slots,
shoulders, and projections can be measured to .001" or 0.01mm with
these fine tools.
The No. 440 gages are furnished with a 2-1/2" (63.5mm) base and
1/8" (3.2mm) diameter measuring rods.
The No. 445 gages are furnished with choices of 3" (75mm), 4"
(100mm), and 6" (150mm) bases and have 5/32" (4mm) diameter
measuring rods.
- Combination ratchet and speeder for
uniform pressure and quicker adjustment
- Ring-type lock nut for quick and
sure locking
Furnished in an attractive, protective
case.
|
