Metallurgical Microscopes

PTIS-NIM-1

• Trinocular head with 30 degree inclination
• Quintuple nosepiece
• Interpupillary 48-75mm eyepiece  high-point
• Extra wide field eyepiece EW10×/20
• Plan achromatic objectives 4X, 10X, 20X, 40X
• Coarse and fine coaxial focusing adjustment
• Vertical objective movement
• Coarse stroke 37.7mm per rotation
• Fine stroke 0.2mm per rotation
• Kohler illumination halogen lamp 30 W, 6 V
• Blue, yellow, green and ground glass filters
• Polarization attachment
• Plain stage 160 × 250 mm

PTIS-KJP

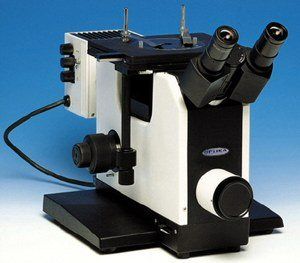

Metallurgical Microscope, Inverted Stage

Components & Specifications:

• Main body
• Mechanical stage with a stroke of 75 by 50 mm
• and size of 180 by 55
• Quadruple nosepiece
• Plan eyepiece 10x/18
• Plan eyepiece 12x/14
• Plan eyepiece 10x-14
• Plan-Achromatic objective 4/0.10
• Plam-Achromatic objective 10/0.25
• S-plan achromatic objective 40/0.65
• Plan-Achromatic objective 100/1.25 oil
• Stage plate (1)
• Stage plate (2)
• Stage plate (3)
• Stage plate holder
• Rotating binocular head ( 45 degree )
• Lamp housing
• Halogen lamp 6V 30W
• Polarizer
• Analyzer

SM 500

Portable Metallurgical Microscope

SM 500 is a self-contained portable metallurgical microscope ideally used for inspecting metallographu of metals in laboratory or in-situ. With fully handheld design and unique magnetic stand, SM 500 can be attracted directly against the surface of ferrous metal at any angles for non-destructive examination on flatness, curvature as well as other complicated surface. SM 500 also can be used with digital camera or CCD image process system to download metallurgical image onto PC for data transfer, analysis, storage and printout.

Features:

• Handheld design makes inspecting metallograph easy in-situ.
• Magnetic stand can be attracted against ferrous metals at any angles.
• X,Y slideway move makes inspection friendly
• More convenient for photography
• Non destructively examination

Specimen:

• Microscope main: 100-500x (extendable 1500x)
• Eyepiece (largeview): 10x,12.5x (extendable15x)
• Objective: 10x, 40x (extendable 100x)
• Photo Eyepiece: 15x
• Slideway: X-direction 15mm, Y-direction12mm
• Illuminator (halogen): 6V 15W
• Power supply: 230Vac 50/60Hz
• Stand: On-off magnetic stand
• Size: 210x160x 95mm
• Weight: 2.5kg
