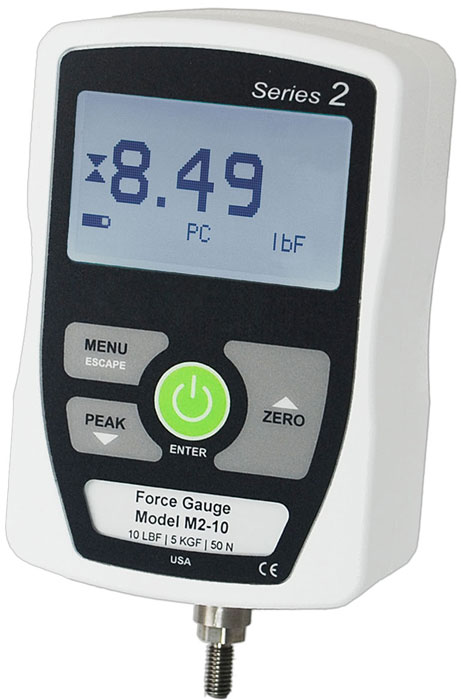

Mark-10 Series 2 Force Gage

Series 2 digital force gauges are designed for basic tension and compression force testing applications up to 500 lbF (2,500 N). Peak tension and compression readings are reliably captured via the gauges' ±0.5% accuracy and 500 Hz sampling rate. A backlit graphic LCD displays the current, peak tension, or peak compression reading.

The gauges are overload protected to 200% of capacity. An ergonomic, reversible aluminum housing allows for hand held use or fixture mounting, rugged enough for applications in both production and laboratory environments. Series 2 gauges are directly compatible with Mark-10 test stands and grips.

• * Calculates peak tension and compression values
• * 3 selectable units of measurement
• * Ultra-compact, ergonomic housing
• * Configurable default measurement unit and mode
• * 500 Hz sampling rate
• * Large, backlit graphic display with auto-dimming
• * Powered by rechargeable battery or AC adapter
• * Reversible housing for alternate load cell orientation

Accuracy:		±0.5% of full scale
Sampling rate:		500 Hz
Power:		AC or rechargeable battery. Multi-step low battery indicator is displayed, gauge shuts off automatically when power is too low.
Battery life:		Backlight on: up to 7 hours of continuous use  Backlight off: up to 24 hours of continuous use
Measurement units:		lbF, kgF, N
Safe overload:		200% of full scale (display shows “OVER” at 110% and above)
Weight:		M2-2 – M2-100: 0.7 lb [0.33 kg] M2-200 – M2-500: 0.9 lb [0.41 kg]
Included items:		AC adapter, rechargeable battery, quick-start guide, resource CD, certificate of conformance
Environmental requirements:		40 - 100°F, max. 96% humidity, non-condensating
Warranty:		3 years (see individual statement for further details)
