Mark-10 Models TSA/TSAH Test Stands

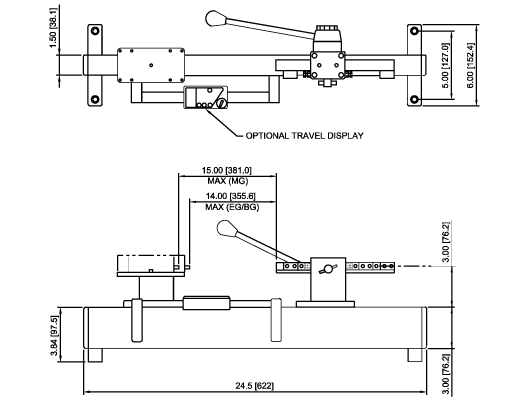

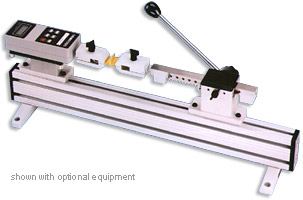

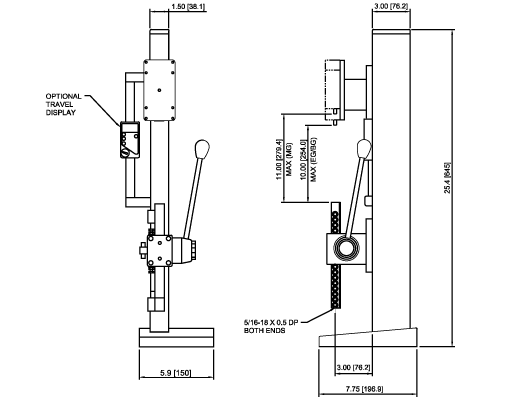

The lever operated Force Measurement Test Stand Model TSA is a perfect solution for quick-action pull testing and compression testing of up to 750 lb of tensile or compressive force. Made of rugged, machined aluminum components, this test stand is durable enough for the factory floor, yet precise enough for laboratory environments. The test stand includes adjustable travel stops and a frictional low force brake. Available in vertical and horizontal orientations.

• Maximum force: 750 lb [3.75 kN]
• Maximum travel, with stops: 2.75" [70 mm]
• Maximum travel, without stops: 6" [152 mm]
• Travel rate: 3" [76.2 mm]/lever revolution
• Compatible with all Mark-10 force gauges, accessories and grips
• Loading lever can be positioned in 30° increments for ease of operation
• Threaded holes for bench mounting
• Adjustable travel stops
• Precision ground rack and pinion mechanism
• Adjustable wear plates for smooth, precise motion
• Optional digital travel display
• Friction brake

• A wide range of force gauges and gripping fixtures
• Digital travel display >>
  6" [152 mm] travel, 0.0005" [0.01 mm] resolution, SPC output for automated data collection
• Horizontal / wall mounting kit
  Set of mounting legs that attach to the test stand column in place of the base
• Custom modifications
  Special modifications are available, including custom-designed fixtures, increased column length, and more. Call 1-888-MARK-TEN for more information.
• Manual.pdf
