Mark-10 Model TSB Test Stand
Manual Lever Operated
3 Year Warranty
Order Number:
TSB100
TSB001
TSB002
TSB003
Price:
$795.00
$755.25
Ship To:
(add new)
yourself
SKU:
TSB100
FEATURES
CUSTOMER REVIEWS
CUSTOMER QUESTIONS
Order No.
Description
TSB100
Test stand, lever-operated, 100 lbs
TSB001
Digital travel display for TSB (requires TSB003 travel stops kit)
TSB002
Horizontal/wall mounting kit for TSB
TSB003
Travel stops kit for TSB
The lever operated Force Measurement Test Stand Model TSB is an economical solution for quick-action tensile testing and compression testing of up to 100 lb of force. Constructed of rugged components, this test stand is durable enough for the factory floor, yet precise enough for laboratory environments.
Maximum force: 100 lb [500 N]
Maximum travel, with stops (optional): 2.75" [70 mm]
Maximum travel, without stops: 6" [152 mm]
Travel rate: 3" [76.2 mm]/lever revolution
Compatible with all Mark-10 force gauges, accessories and grips
Loading lever can be positioned in 30° increments for ease of operation
Mounting holes for bench mounting
Optional adjustable travel stops
Precision ground rack for smooth precision motion

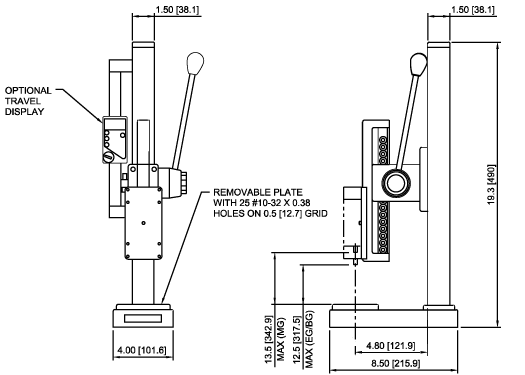

Removable base plate with 25 #10-32 UNF holes for fixture mounting
Low force friction brake
Manual.pdf
>>
Test stand comparison chart
OPTIONAL EQUIPMENT
A wide range of force gauges and gripping fixtures
Digital travel display
>>
6" [152 mm] travel, 0.0005" [0.01 mm] resolution, SPC output for automated data collection. Requires travel stops kit.
Horizontal wall / mounting kit
Set of mounting legs that attach to the test stand column in place of the base
Travel stops kit
Set of upper and lower travel stops
