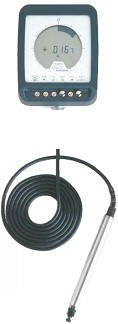

Mahr Maxum II Remote

• Features both digital display for accuracy and readability and unique „fan“ analog display for trend and change
• User configurable in inch/ metric units, normal/reverse sensing, resolution, analog scale, and tolerance setup & display
•  Both integral and remote readout versions available
•  Data output – 3 formats – Maxum, serial, digimatic
•  Auto-power down increases battery life – uses commercially available battery
•  Dynamic Capabilities: min, max, TIR, hold, reset
• Digital sensing allows indicating unit to identify digital transducer type by range
• Digital transducers equipped with durable cable and spring strain relief design and includes right angle option clip
• Digital Transducer available in Canister or Pencil style
• Special options available, such as –setup mode or calibration lockout, remote external power, 4:5 ratio, 2.0 or 3.0 inch stem lengths, and more…..
• Easy to select and order and operate!
• IP54 protection
• Easy to select and order and operate!

Maxum®III Digital Transducer**

Digital Transducer Model:

±0.40 in / ±1.00 mm

±0.100 in / ±1.99 mm

3-4ox./85-112 grams, preloaded

50° to 130°F/10° to 55°C

-4° to 149°F/-20° to 65°C
