Measuring Range
Application Range
Measuring Error*(u95) in µm
Interface
Model Number (G Series)
4426541
4426543
Application

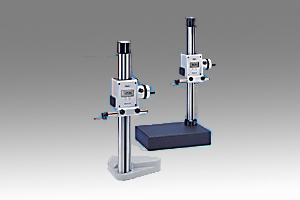

For measuring heights, center distances between bores, surfaces and width of ledges. Also for marking and scribing of parts.Design FeaturesSturdy column. Measuring head with accurate ball bush guiding system, adjustable in height by hand crank and to be locked at any desired point. With fine setting. Digital display with large figures. Zero setting in any position. With digital preset and data output. Universal mounting for measuring, scribing, and centering elements.Two models availableStandard model with cast iron base and measuring table model with table plate made of hard granite. Easy conversion from one model to the other. Cast iron base and granite table plate available separately.Digimar M 814 N: standard modelWith extra rugged, cast iron base with three-point support. To be used on base plates, machine beds and workpiece surfaces.Digimar M 814 G: measuring table modelWith table plate made of fine grained black granite (greenstone) of great hardness and form stability.Table surface 300 mm x 200 mm (11.81 in x 7.87 in). For testing large workpieces, column with measuring head can be turned thus pointing to the rear.
Digimar M 814 N / M 814 G
