Mahr 2-Jet Air Plugs
Mahr Inc.
Magnification:
Low
High
Range:
.123-.185" (3.1-4.7mm)
.185-.248" (4.7-6.3mm)
.248-.3735" (6.3-9.4mm)
.3735-.540" (9.4-13.7mm)
.540-.825" (13.7-21.0mm)
.825-1.135" (21.0-28.8mm)
1.135-1.484" (28.8-37.7mm)
1.484-2.010" (37.7-51.1mm)
2.010-2.510" (51.1-63.8mm)
2.510-3.004" (63.8-76.3mm)
3.004-3.510" (76.3-89.2mm)
3.510-4.010" (89.2-101.9mm)
4.010-4.500" (101.9-114.3mm)
Quantity:
1
2 & Up
Material:
High Chrome Content
Chrome
Style:
Through Hole
Blind Hole
Counterbore
Exact Size Within Selected Range:
I agree I have entered a size within the range
Price:
$488.00
Ship To:
(add new)
yourself
SKU:
HCTH.185
FEATURES
CUSTOMER REVIEWS
CUSTOMER QUESTIONS
Through Hole, Blind Hole and Counterbore*
Size Ranges
(Inch/Metric)
Above
Thru & Including
LOW Magnification
For 1260:1, 2500:1,
4000:1,
5000:1
& 8000:1
.123"/3.1mm+
.185"/4.7mm
.185"/4.7mm
.248"/6.3mm
.248"/6.3mm
.3735"/9.4mm
.3735"/9.4mm
.540"/13.7mm
.540"/13.7mm
.825"/21.0mm
.825"/21.0mm
1.135"/28.8mm
1.135"/28.8mm
1.484"/37.7mm
1.484"/37.7mm
2.010"/51.1mm
2.010"/51.1mm
2.510"/63.8mm
2.510"/63.8mm
3.004"/76.3mm
3.004"/76.3mm
3.510"/89.2mm
3.510"/89.2mm
4.010"/101.9mm
4.010"/101.9mm
4.500"/114.3mm
HIGH Magnification
For 1000"1, 16000:1, 20000:1 & 32000:1
.062"/1.6mm
.093"/2.4mm
.093"/2.4mm
.123"/3.1mm
.123"/3.1mm++
.185"/4.7mm
.185"/4.7mm
.248"/6.3mm
.248"/6.3mm
.365"/9.3mm
.365"/9.3mm
.540"/13.7mm
.540"/13.7mm
.825"/21.0mm
.825"/21.0mm
1.135"/28.8mm
1.135"/28.8mm
1.484"/37.7mm
1.484"/37.7mm
2.010"/51.1mm
2.010"/51.1mm
3.004"/76.3mm
* Two-Jet, Open Jet Style only; One-Jet, Three-Jet, Four-Jet and Six-Jet Air Plugs and Air Plugs for special applications also available - contact
service@measurenow.com
+ For 2500:1 thru 8000:1 - Blind Hole Air Plug sizes start at .155"/3.9mm
++ For 10000:1 thru 32000:1 - Blind Air Plug sizes start at /125"/3.2mm
Features:
Tooling is interchangeable without adjusting system magnification
Mahr Air Plugs have large clearance allowing easy entrance into the hole being measured and greater measuring range
Long life - wide clearance and hard chrome (optional) body extends useful life of the Air Plug
Deep, recessed jets - Air jets are recessed into the plug body which protects them from damage
Large jet size eliminates clogging from dirts and oils
PLUG IDENTIFICATION
Air Plugs are marked with an identification number which identifies its size, number of jets, plug style, and the Dimensionair Model the plug should be used with.
For example, DP50-T2-1.000 is the identification number of an Air Plug for a 2095184 or a standard magnification 832 Dimensionair (DP50), through-hole style with two jets (-T2), and 25../1.000in nominal size (-1.000).
The number (50) which identifies the Dimensionair intended is marked on the plug and also appears on the dial of the Dimensionair to help in matching the tooling to its corresponding Dimensionair Model.

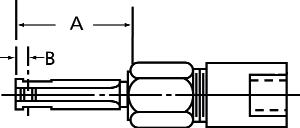

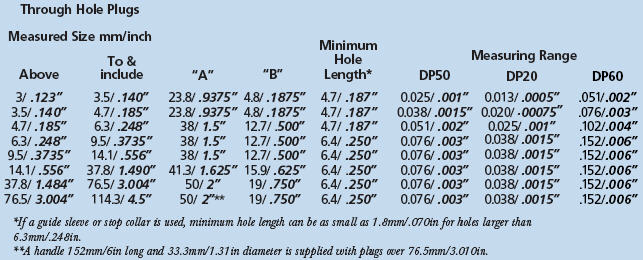

THROUGH HOLE PLUGS (DP50 - DP20 & 60)
3-4.7mm/.123-.185"
Minimum recommended hole length: 4.8mm/.187in
14.1-37.8mm/.588-1.484"
Minimum recommended hole length:
6.35mm/ .250in
With guide sleeve or stop collar:
1.77mm/ .070in
May be used with AHA-4 or -5
Extensions for deep holes.
4.7-6.3mm/.185-.248"
Minimum recommended hole length:
4.8mm/ .187in
37.8-76.5mm/1.484-3.004"
Minimum recommended hole length:
6.35mm/ .250in
With guide sleeve or stop collar:
1.77mm/ .070in
May be used with AHA-4 or -5
Extensions for deep holes.
6.3-9.5mm/.248-.3735"
Minimum recommended hole length: 6.35mm/ .250in
With guide sleeve or stop collar:
1.8mm/ .070in
9.5-14.1mm/.3735-.588"
Minimum recommended hole length:
6.35mm/ .250in
With guide sleeve or stop collar:
1.77mm/ .070in
May be used with
AEX-1 or -2 Extensions
for deep holes.
76.5-114.3mm/3.004-4.50"
Minimum recommended hole length:
6.35m /.250in
With guide sleeve or stop collar:
1.8mm/.070in

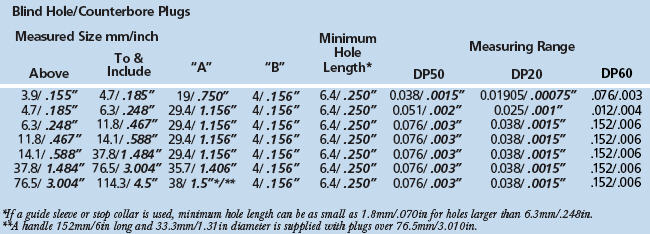

BLIND HOLE/COUNTERBORE PLUG (DP50 - DP20 & 60)
3.9-4.7mm/.155-.185"
Minimum recommended hole length:
6.35mm/ .250in.
Note: Masters must simulate workpiece for
holes of this size.
11.8-14.1mm/.467-.556"
Minimum recommended hole length:
6.35mm/ .250in.
Shorter bores can be checked. Consult
Mahr Inc. Customer Resource Center.
May be used with Extensions AEX-1 or -2
for deep holes.
4.7-6.3mm/.185-.248"
Minimum recommended hole length:
6.35mm/.250in.
14.1-37.8mm/.588-1.484"
Minimum recommended hole length: 6.35mm/
.250in. Shorter bores can be checked. Consult
Mahr Inc. Customer Resource Center. May be
used with AHA-4 or -5 Extensions for deep holes.
6.3-9.47mm/.248-.373"
Minimum recommended hole length:
6.35mm/.250in
Shorter bores can be checked.
37.8-76.5mm/1.484-3.004"
Minimum recommended hole length: 6.35mm/
.250in. Shorter bores can be checked. Consult
Mahr Inc. Customer Resource Center. May
be used with AHA-4 or -5 Extensions
for deep holes.
9.47-11.8mm/.373-.467"
Minimum recommended hole length:
.250in. Shorter bores can be checked.
May be used with extension AHA-28 for
deep holes.
769.5-108.2mm/3.004-4.50"
Minimum recommended hole length:
6.35mm/ .250in.

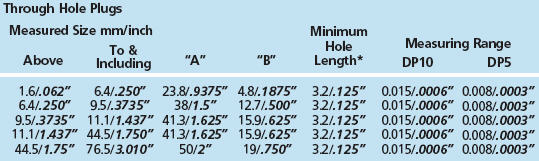

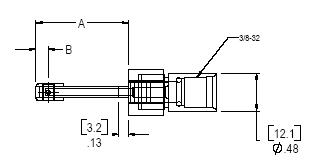

THROUGH HOLE PLUG (DP10 - DP5)
1.6-6.4mm/.062-.250"
Minimum recommended hole
length: 3.18mm/ .125in.
11.1-44.5mm/.437-1.750"
Minimum recommended hole length:
3.18mm/ .125in with proper support
min. is 1.14mm/ .045in. May be used
with AHA-23 or -24 Extensions for
deep holes.
6.4-9.5mm/.250-.3735"
Minimum recommended hole length:
3.18mm/ .125in.
With guide sleeve or stop collar:
1.14mm/ .045in.
44.5mm & Up/ 1.750" & Up
Minimum recommended hole length: 3.18mm/
.125in. With guide sleeve or stop collar:
1.14mm/ .045in. May be used with AHA-23
or -24 Extensions for deep holes.
9.5-11.1mm/.3735-.437"
Minimum recommended hole length: 3.8mm/
.125in. With guide sleeve or stop collar:
1.14mm/ .045in. May be used with AHA-
23 or -24 Extensions for deep holes.

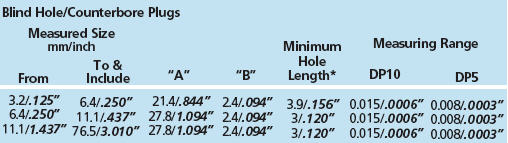

BLIND HOLE PLUGS (DP10-DP5)
3.2-6.4mm/.125-.250"
Minimum recommended hole length:
3.96mm/ .156in.
6.4-11.1mm/.250-.437"
Minimum recommended hole length:
3.18mm/ .125in.
11.1mm & Up/.437" & Up
Minimum recommended hole
length: 3.18mm/ .125”.
Use AHA-23 or -24 Extensions
for deep hole applications.

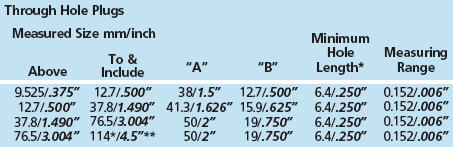

THROUGH HOLE PLUG (DP100)
9.525-12.7mm/.375-.500"
Minimum recommended hole length:
6.35mm/ .250in, with proper support
min. is 3.18mm/ .125in. May be used
with AEX-1 or -2 Extensions for deep
holes.
37.8-76.5mm/1.490-3.004"
Minimum recommended hole
length: 6.35mm/ .250in.
May be used with AHA-4 or -5
Extensions for deep holes.
12.7-37.8mm/.500-1.490"
Minimum recommended hole length:
6.35mm/ .250in, with proper support min.
is 1.14mm/ .125in. May be used with
AHA-4 or -5 Extensions for deep holes.
76.5mm & Up/3.004" & Up
Minimum recommended hole
length: 6.35mm/ .250in.

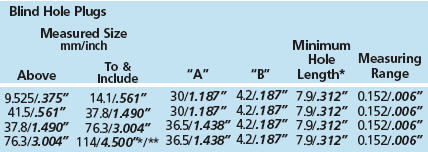

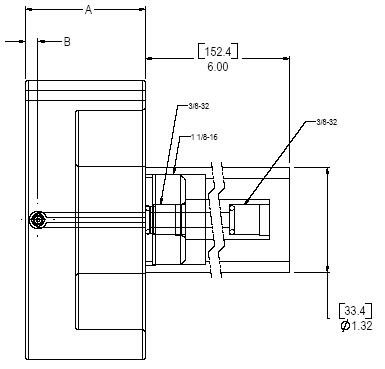

BLIND HOLE/COUNTERBORE PLUGS
9.525-14.25mm/.375-.561"
Minimum recommended
hole length: 7.9mm/ .312in.
37.8-76.3mm/1.490-3.004"
Minimum recommended hole
length: 7.9mm/ .312in. Use
with AHA-4 or -5 handles
for deep hole applications.
14.25-37.8mm/.561-1.490"
Minimum recommended
hole length: 7.9mm/ .312in.
Use with AHA-4 or -5
handles for deep hole applications.
76.3-114.3mm/3.004-4.500"
