Flat Anvil Snap Gages

(indicator not included)

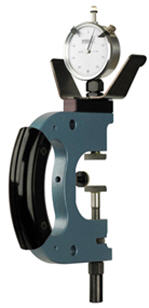

Dial Snap Gages - Flat Anvils

Special Features:

• Quick and easy inspection of parts in machining processes
• Ranges available: 0-8"/0-200mm
• Adjustable anvil through 1"/25mm range
• Adjustable gaging pressure
• Lightweight, metalurgically stabalized aluminum frame
• .66 inch square tungsten carbide anvils
• Within 1/2" the central square surface, anvils are parallel within:
  .00015" on sizes up to 4"/100mm
  .0002" on sizes 4"/100mm to 8"/200mm

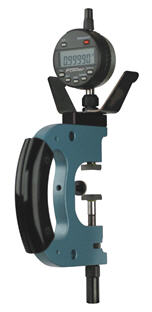

Electronic Snap Gages - Flat Anvils

This versatile electronic snap gages provides all the features of standard snap gages:

Special Features:

• Ranges available: 0-8"/0-200mm
• Adjustable anvil through 1"/25mm range
• Adjustable gaging pressure
• Lightweight, metalurgically stabilized aluminum frame
• .66 inch square tungsten carbide anvils
• Within the 1/2" central square surface, anvils are parallel within:
  .00015" on sizes up to 4"/100mm
  .0002" on sizes 4"/100mm to 8"/200mm

Indicator Features:

• Dual reading Inch/Metric Electronic Indicator
• Resolution: .0005"/.001mm
• Preset with recall
• ABS/INC Measurement
• Min/Max/TIR
