Facsimile

Flexbar

Kit:

Price: $95.00

Ship To:

SKU:

16000

FEATURESCUSTOMER REVIEWSCUSTOMER QUESTIONS

Description	Order No.

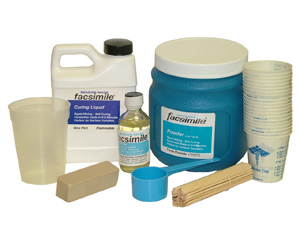

1 Lb. Kit *facsimile®* (one pound kit yields 20 cubic inches of solid (cured) material) Complete kit Contains: 1- facsimile® Powder 1 lb. Troy 1-120cc facsimile® liquid 1-60cc Flexbar Release Agent 1-Powder Scoop 1-Molding clay 10-Disposable cups (graduated) 10-Wooden spatulas 1-1 oz. polypropylene measuring cup	16000
3 lb. Kit facsimile® (three pound kit yields 62 cubic inches of solid (cured) material)	16003
25 lb. Kit *facsimile®* (twenty five pound kit yields 518 cubic inches of solid (cured) material)	16025

Technical Specifications:

A test submitted by E. I. DeNemour & Company to an independent test lab showed the following properties of facsimile®: Test Piece approximately 1" by 1/4 Thickness.
Compression Test	Maximum load 6,800 lbs. Compression strength 9,650 PSI.
Mechanical Properties	Ultimate tensile 3,415 PSI
Water Absorption (24 hours at 73º) 0.31% by weight	The kit contains all material and instructions. The facsimile® can be diluted from a putty consistency to a watery to best suit your job needs. If larger quantities of facsimile® are desired they can be ordered in 3 lb. and 25 lb. kits at proportionately lower prices per pound.

Facsimile is a special plastic compoiund kit which is used for duplicating surface flats, roughness and for dimensional transfer of inaccessible locations. Many other applications are listed below and many more in our free 24 page applications booklet.
Makes duplicates for measuring, such as gages, etc.
Test surface geometry, flatness, microfinish, etc.
Make permanent records of surface geometry, etc.
Make custom holding and nesting fixtures
Make quick jigs
Make excellent stylus patterns
Make instant molds and patterns
Cast small run parts and prototypes
Mask, fill in and seal
Fretting depth of blade dovetails in jet engines

Make potting, bonding, and repairing easy
Closer inspection can be performed by allowing the casting to cure in a pressure vessel (15 p.s.i)
Facsimile will not affect the surface of ferrous or non-ferrous materials to which it is applied.
When casting in a "CONFINED" area, it is better to cast 1/2 of the internal shape
Remember - when casting without releasing agent, an ACETONE soak removes Facsimile.

Applications

To create a master or checking gage, just pour in facsimile® and wait 6 to 8 minutes. Parts later can be conventionally ground, machined, etc., if desired. Drawing above shows creation of a thread gage.

A quick and inexpensive method of creating a drill fixture , just pour facsimile® around drill bushings and wait 6 to 8 minutes. Casting must be a thick section 3/8" or more. Use magnets to hold plates.

Without removing work from the machine set-up you can create a facsimile® test sample which can be carried away for testing. Duplicates from 3 to 1,000 Microinches perfectly.

Used for checking radii and angular internal and external recesses, often in difficult to measure area.

Optical projections of forms made with facsimile® are duplicates within millionths

Highly accurate and reliable casted replicas of internal thread forms are not only possible but they are being performed daily by facsimile® users the world over.
