Description:

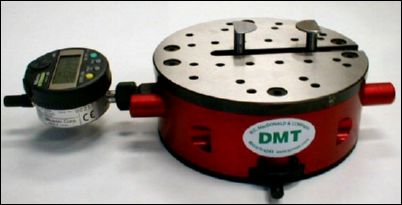

- The DMT is a comparison instrument for checking dimensions relative to a master.
- The dimension is obtained: -for 2 point measurement by reading the maximum point determined during the travel of the part between the fixed and the sensitive contacts. -for 3 point measurement by reading the dimension on the indicator with the part in position between the 2 fixed pins and the sensitive contacts.
- Robust. Wide measuring range from the smallest possible measured dimension.
- Versatility and high accuracy: repeatability +/- .00008"(2 microns) threads and rapid checks +/- .00016(4microns).
- Fast adjustments.
- Simple, Quick measurement.
- Quick internal-external conversion.
- Adjustable measuring force.
- Possibility of very low measuring force for thin, wall parts.
- Possibility of direct dimension readout, by electronic column amplifier with LVDT.
- Mechanical dial indicator or digital electronic.
- Indicators with 8mm or .375" stem available.
- ID Range-.079-9.98" OD Range-0"-7.80"
Standard Accessories Included:
- Qty. 1-CST-8-160C-Short fixed anvil support.
- Qty. 1-CST-8-160L-Long fixed anvil support.
- Qty. 2-Fixed (half-moon) pins, used to lock contact holders in place.
- Qty. 2-C-8-160L-Anvils to measure ID-OD diameter.
- Qty. 2-C-8-160C-Anvils to measure ID-OD diameter.
- Qty. 1-CST-8-160C-MBC-Short holder for use with CSI-5-160-MBC 8mm-5mm adapters.
- Qty. 2-C6-160L-Contacts for small diameters. Used with CSI-5-160-MBC.
- Qty. 2-CCH-8-160L-Anvil for ID-OD.
- Shallow counter bore.
- Qty. 1-RC20-Extension for dial indicator.
- Plastic Case.
- Indicator sold separately.
|
