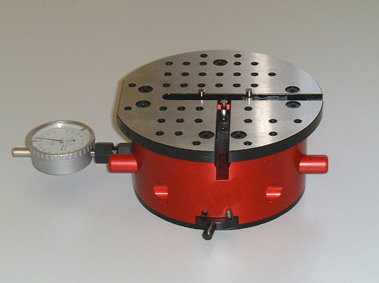

DMT 160-C3-90

Description:

The DMT is a comparison instrument for checking dimensions relative to a master. The dimension is obtained: -for 2 point measurement by reading the maximum point determined during the travel of the part between the fixed and the sensitive contacts. -for 3 point measurement by reading the dimension on the indicator with the part in position between the 2 fixed pins and the sensitive contacts.

• Robust. Wide measuring range from the smallest possible measured dimension.
• Versatility and high accuracy: repeatability +/- .00008"(2 microns) threads and rapid checks +/- .00016(4microns).
• Fast adjustments.
• Simple, Quick measurement.
• Quick internal-external conversion.
• Adjustable measuring force.
• Possibility of very low measuring force for thin, wall parts.
• Possibility of direct dimension readout, by electronic column amplifier with LVDT. Mechanical dial indicator or digital electronic. For inspection across 2 points the capacity of the C3 – 90 tables are 10 mm greater than the standard COME 0 160 (the top plate is Ø 175 mm)

Capacity for inspection across 3 points:

Internal :-
Minimum Ø .590’’ (15mm)

Maximum Ø 2.750’’ ( 70 mm )
External :-
Minimum Ø 0mm

Maximum Ø 2’’ (50 mm)

• (Indicator sold separately)


  Two Year Warranty

  3 POINT CONTACT
