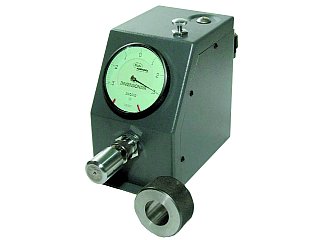

Dimensionair Air Gages (single master system)

Mahr Inc.

Order Number:

Price: ~~$1,966.00~~ $1,867.70

Ship To:

SKU:

2095183

Order Number	Magnification	Tooling ID no.	Range	Minimum Graduation	Surface Finish	Part Tolerance
2095183	1250:1	100	.006"	.0001"	100/2.54	+-.002"
2095184*	2500:1	50	.003"	.00005"	50/1.27	+-.001"
2095185*	5000:1	20	.0015"	.00002"	20/.50	+-.0005"
2095186	10000:1	10	.0006"	.00001"	10/.25	+-.0002"
2095189	20000:1	5	.0003"	.000005"	5/.12	+-.0001"
2095190	1250:1	100	152um	2um	100/2.54	+-50um
2095191*	2500:1M	50	76um	1um	50/1.27	+-25um
2095192*	5000:1M	20	38um	.5um	20/.50	+-13.5um
2095193	10000:1M	10	15.2um	.2um	10/.25	+-5um
2095194	20000:1M	5	7.6um	.1um	5/.12	+-2.5um
2095195*	4000:1M	50	.003"	.000025"	50/1.27	+-.001"
2095196*	8000:1	20	.0015"	.000010"	20/.50	+-.0005"
2095197	8000:1	10	.006"	.000010"	10/.25	+-.0002"
2095198	16000:1	5	.003"	.000005"	5/.12	+-.0001"
2095199*	4000:1	50	76um	.5um	50/1.27	+-25um
2095200*	8000:1M	20	38um	.2um	20/.50	+-13.5um
2095201	16000:1M	10	15.2um	.2um	10/.25	+-5um
2095202	32000:1M	5	7.6um	.1um	5/.12	+-2.5um
* Contingent upon Plug having equivalent range

Features

Uses regular shop air (40 -150 psig).
Internal pressure regulator keeps measuring pressures within calibrated range.
Adjust meter to zero using a single setting master and the zero setting screw.
High visibility meter has fine line graduations and a needlethin hand for clear, precise readings. An air filter is included to remove dust and dirt contaminants from air line.
Tooling mounts to the front of the unit. Connections are tight with finger pressure.
No recalibration necessary when changing tooling. Just set zero and measure!
Models available in 5 magnifications, 2 dial styles, and either Metric or Inch.
