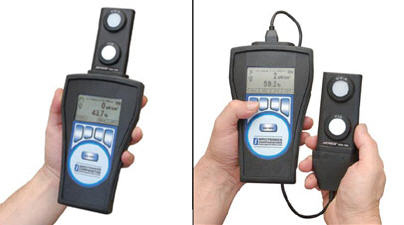

XRP-3000 AccuMAX™ Digital Radiometer/Photometer
The XRP-3000 features an advanced microprocessor-controlled readout unit with a dual-wavelength sensor detector to measure both ultraviolet and visible light.
Large, easy-to-read LCD screen
Provides readouts for UV-A, visible irradiance or radiance
Overall accuracy greater than ± 5% per NISt standards
Choice of direct or USB cable connection between sensor detector and readout unit
Automatic zeroing, integration and signal hold
Excellent cosine reponse
User-defined power save and automatic shutoff
Rugged meter housing features removable, protective rubber boot for better grip and to help prevent accidental breakage
Sealed sensor housing and USB connection with water-resistant adapter
Compat, lightweight and battery-operated for convenient use in the factory, field or anywhere measurements are needed
Complies with ASTM specifications for MPI and FPI
Comes complete with readout unit, dual-wavelength seonsor detector, USB cable with water-resistant adapter, protective rubber boot, two 9V alkaline batteries and padded carrying case
SPECIFICATIONS
Resolution
4-digit autoranging display
Screen
128 x 64 dot pixel chip on glass
STN transmissive monochrome LCD 2.8 in
(7.1cm) diagonal illuminated (backlit)
Sample Rate
7.5 Hz (single sensor)
15 Hz (dual sensor)
Read Update
2 Hz
Overall Accuracy
Better than ±5% with reference to NIST standards
Temperature Coefficient
±0.025%/°C (0 to 50°C)
Power Requirements
Two 9V alkaline batteries (included)
Length
7.75 in (19.7cm)
Width
4.25 in (10.8 cm)
Thickness
1.25 in (3.2 cm)
Weight
0.8 lb (360 g)
Dual UV-A/Visible Sensor Detector (XDS-1000)
Irradiance Range
UV-A Sensor
0-100 m
W/cm
2
(0-100,000 µW/cm
2
)
Visible Sensor
0-5,300 lux (0-500 fc)
Spectral Range
UV-A Sensor
320-400 nm
Visible Sensor
460-675 nm
Dimensions
Length
4.75 in (12.1cm)
Width
2.0 in (2.2 cm)
Thickness
7/8 in (2.2 cm)
Weight
0.22 lb (100 g)
USB Cable Length
5 ft (1.5 m)
