CC-20 Optical Comparator

CC-20 Optical Comparator with motorized worktable with 15 x 9” (380 x 230 mm) X-Y travel
CC20STD

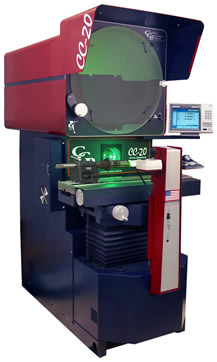

The CC-20 is a high quality floor standoptical comparator with the following standard features:

OPTICS & ILLUMINATION

• 20" (510mm) ground glass screen with 90° centerlines
• Telecentric optical system with fully corrected, erect and unreversed images
• Coated optics for optimum image contrast and screen illumination

MEASUREMENT FEATURES

• 0.00004" (1 µm) resolution glass scales
• Precision rotary screen ring
• Digital readout of screen rotation to 0.01° or 1"
• QVI Q Check DRO

MEASURING STAGE AND CAPACITY

• Variable speed power drives with joystick control
• Manual fine adjustment on horizontal motion
• 550 lb. (250 kg) load capacity
• 8 x 32" (203 x 813 mm) nickel plated iron worktable with three fixturing slots
• 8.38" (215 mm) constant working clearance with all lenses
• 18.38" (465 mm) throat clearance with all lenses
• 3.0" (75 mm) focus travel with precision fine adjustment

RELIABILITY AND WARRANTY

• Rigid welded base
• Steel cabinet and access panels
• Operation and service manuals
• Fused electrical system for 115 volt, 50/60 Hz single phase power
• Full one-year on-site warranty
