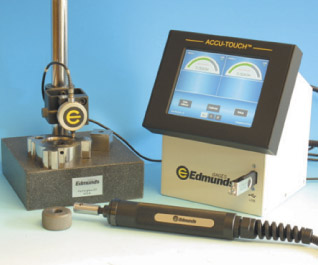

• 5.7” Touch Screen Multi-color Flat Panel Display.
• User defined LVDT or air-to-electronic input channelsfrom Edmunds medians.
• (2) USB ports, (1) RS-232C serial port, standard.
• 100 to 240VAC 50-60Hz Global Switching input power.
• Inch or Millimeter Displays.
• Live, (+) Peak, (-) Peak, and T.I.R. gaging modes.
• Upper and Lower Limit Indicators.
• Resolution from 2 to 6 decimal places.
• For Single (electronic only) and Dual Master calibration.
6.88” W x 8.50” H x (13” with Air) 7.0” D.
174.7mm W x 215.9mm H x (330mm with Air) x 178mm D.
Accuracy: .5% full scale (LVDT).
.1% full scale (Air).
Precision: (Repeatability) 6µ inch.
Linearity: .25% full scale.
Bandwidth: 125hz.
Resolution: 10µ inch over +/- .020", 1µ inch over +/- .005".
Range: Auto Ranging from +/- .004" ~ +/- .040".
Expanded Model:
Expanded (includes Auto-Air Saver port, (2) USB and (1) RS-232 serial ports):
#E7204A (4) LVDT or air-to-electronic inputs.
Docking Units:
#E7110 (1) Channel air-to-electronic transducer with input cable.
#E7120 (2) Channel air-to-electronic transducers with input cables.
#E7130 (3) Channel air-to-electronic transducers with input cables.
#E7140 (4) Channel air-to-electronic transducers with input cables.
Options:
#4570642 Qualified Memory Stick.
#G-55992 Label Printer Package
#5917036 2-Pedal Footswitch
#5809620 A/E Needle Cover (Covers 2 NE Channels
Auto Air Saver:
Automatically shuts off airsupply when air gages are idle. Saves up to
78% of compressed air used.
#5917040 for 1 & 2 channel units.
#5917041 for 3 & 4 channel units.
