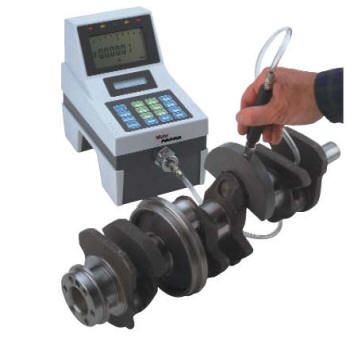

832 Dimensionair Digital Electronic Amplifier

Mahr Inc.

Order Number:

Price: ~~$3,006.00~~ $2,855.70

Ship To:

SKU:

2004100

Number of Jets	Voltage/Adaptor	Low Magnification Single Input Order No.	High Magnification Single Input Order No.	Low Magnification Dual Input Order No.	High Magnification Dual Input Order No.
1,2,3	110/U.S.	2004100	2004103	2004106	2004109
4	110/U.S.	2004101	2004104	2004107	2004110
6	110/U.S.	2004102	2004105	2004108	2004111
1,2,3	240/ International	2004112	2004115	2004118	2004121
4	240/ International	2004113	2004116	2004119	2004122
6	240/ International	2004114	2004117	2004120	2004123

Features:

Digital and analog displays in a single unit. Large, high contrast digital readout shows exact deviation from zero; analog display shows measurement conditions ata a glance.
Fixed resolution and balanced air system makes the Digital Dimensioair a stable and reliable system for manufacturing environments.
Only a single master required to set zero; system is precalibrated for correct magnification.
Ranges and resolutions for virtually any air gage application, including 2-, 3-, 4- and 6-jet tooling plus AirProbes and JetProbes.
Dynamics measurement capability.
RS-232 Output - for communicating with a data collector, computer or printer, permitting statistical process control.
Master Deviation - enhances measurement by making Auto
Zero even more accurate
Product Brochure

Technical Data:

Operating Temperature	5~35° C/41~95° F
Storage Temperature	0~60° C/32~140° F
Repeatability	±1 digit or ±1% of range, whichever is greater
Calibration Accuracy	±1 digit*
Linear Error	±1 digit
Response Time (Electronics)	43 msec.
Response Time (Air)	Approx. 1 sec. (dependent on hose length of air tooling)
Thermal Stability	0.1% of full scale/°F
Digital I/O	Five TTL opto-isolated outputs
Data Output	RS-232, transmits Channels A, B, (or both — dual input models only)
Analog Output	±5 Vdc full scale for displayed value signal ±A, ±B
Measuring Modes	Actual, Minimum, Maximum, T.I.R., Nominal
Tolerance Indicators	five LED
Weight (approx.)	11 lbs./5kg
Dimensions	254mmh x 197mmw x 216mmd/10inh x 7.75inw x 10.25ind
Display Modes	A, (or B or both — dual input models only)
Auto Power Off	after 30 minutes of non-use (selectable)
Power Requirements	100 Vac to 240 Vac, 50-60Hz with power module(Furnished)
*for applications where the local elevation is greater than 305M/1000 feet, special calibration is required.

Model

Measuring Range

Digital Resolution

Analog Resolution

Tooling ID Number

Low
Magnification

Single or Dual Input

±0.0080mm / ±.003inch

±0.040mm / ±0.015inch

±0.020mm / ±0.00075inch

±0.0002mm / 10µ

0.004mm / 150µ inch

0.002mm / 75µ inch

0.001mm / 38µ inch

High
Magnification

Single or Dual Input

±0.008mm / ±.0003inch

±0.004 / ±.00015inch

±0.0001mm / 5µ

0.0004mm / 15µ inch

0.0002mm / 8µ inch
