77 Series Shallow Diameter Gage
Mueller Gages Company
Order Number:
70M
71M
75M
76M
77M
78M
Price:
$1,040.00
$1,019.20
Ship To:
(add new)
yourself
SKU:
70M
FEATURES
CUSTOMER REVIEWS
CUSTOMER QUESTIONS
Mod. No.
Indicator
Indicator
Travel
Inside
Range
Outside
Range
Adj. Gaging
Depth
Length
Approx.
Weight
70M
.0001"
.050"
7/16"-3 1/4"
1/32"-3"
0"-1"
4 1/2"
19 oz.
71M
.0005"
.050"
7/16"-3 1/4"
1/32"-3"
0"-1"
4 1/2"
19 oz.
75M
.0005"
.050"
7/16"-5 1/2"
1/32"-5 3/16"
0"-1"
7 1/2"
25 oz.
76M
.0005"
.050"
7/16"-9 5/16"
1/32"-9"
0"-1"
11 1/2"
30 oz.
77M
.0001"
.050"
7/16"-5 1/2"
1/32"-5 3/16"
0"-1"
7 1/2"
25 oz.
78M
.0001"
.050"
7/16"-9 5/16"
1/32"-9"
0"-1"
11 1/2"
30 oz.

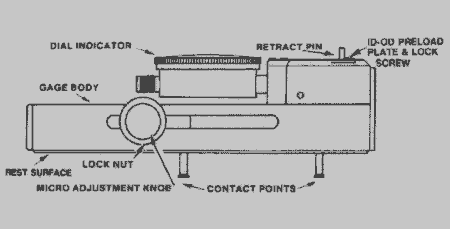

For use at machine or inspection area for checking inside and outside diameters, shallow bores, counter bores, pitch diameters of gears and many other dimensions.
Fast & dependable 2 point measurement directly across diameter.
Frictionless Reed Transfer Mechanism provides precise repeatability.
0- 1" adjustable gaging depth.
Hardened steel gage rest surface.
Fast acting Rack & Pinion fine adjustment for rapid setting.
Positive mechanism instantly changes gaging direction & reloads indicator. No loose parts.
May be set with gage blocks, ring gage or qualified part.
Several contact types available from stock.
Gaging contacts may be rotated as they wear, greatly extending their useful life.
70M & 71M gages are supplied with AGD group I dial indicator with rev counter and 1 set no. 79-100 contact points.
75M thru 78M gages are supplied with an AGD group 2 dial indicator
Metric indicators available for all models.
77M
77M with Analog/Digital Indicator
70M
78M
