560 Series Gages

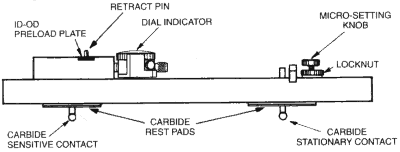

560 Gages:

560 with 318-250c contacts	560 with digital/analog indicator

• Supplied with AGD Group 2 .0005" dial indicator with revolution counter. Gage travel is .040"
• .0001", .01mm or .002mm dial indicators available
• Fully adjustable gaging depth from 0 to 1"
• With #319-1-.250C half ball carbide contacts diameters may be checked very close to the face of a counter bore
• Fitted hardwood storage cases available for all models

• Checks diameters by comparing part dimensions to gage blocks.  Actual part dimension shown on dial indicator.
• Gage may be used with any AGD Group II style (2 1/4" dia) Electronic digital indicator with SPC output.
• Gage rests on face of part for fast & dependable 2 point measurement directly across diameter.
• Lightweight - Alloy Steel Airframe tubing gage body.
• 4 1/2" to 60" Diameter Range - 6 Models - Larger sizes available.
• Frictionless Reed Transfer Mechanism provides precise repeatability.
• Fast acting Rack & Pinion fine adjustment for rapid setting.
• Positive mechanism instantly changes gaging direction & preloads indicator.
• Easily set with gage blocks or qualified part.
• 0 to 1" adjustable gaging depth.
• Carbide gage rest surface
• Gaging contacts may be rotated as they wear, greatly extending their useful life.
• Hardwood storage cases available for all models.
• Gages supplied with 318-.250C carbide ball contacts and AGD group 1 .0005" dial indicator unless otherwise requested
