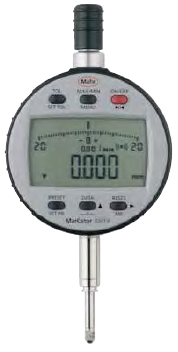

1087 Ri Wireless

Functions:

• ON/OFF
• RESET (Set display to zero)
• mm/inch
• Reverse the counting direction
• PRESET (Allows the entry of any value using set buttons)
• TOL (enter tolerance limit values)
• Tolerance band max. 1.6mm
• MAX/MIN memory, ideal for searching the reversal point
• TIR (MAX-MIN) ideal for testing concentricity and flatness
• ABS (Display can be set to zero, without losing the reference to the Preset value)
• 0 (Set analog display to zero)
• DATA (when connected with a data connection cable)
• Factor (adjustable)
• Immediate measurement due to the reference system
• Individual buttons can be locked - lock function
• Operating and display unit (bezel) can be rotated 280°
• High contrast LCD with 8.5 mm high digits
• Operating time approx. 3 years (2000 work hrs/year)
• Maximum measuring speed 1.5 m/s (60"/s)
• MarConnect data output, choose either: USB, OPTO RS232C, Digimatic, Integrated Wireless
• Operating temperature 10-40°C
• Class of protection IP42 in accordance to IEC 60529
• Supplied with: Battery, Operating Instuctions
