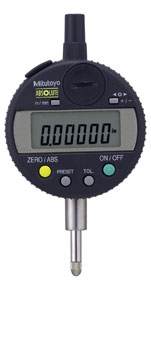

543 Standard Series

543-392 Mitutoyo
$424.00
$381.60
Add To Cart

Stem Diameter 3/8", #4-48 UNF Thread
     Order Number

 Resolution Range
LugBack
FlatBack
 Model Accuracy
Measuring Force
Remarks
 .00005"/
0.001mm
 .5"/12.7mm  543-252 543-252B ID-C112EB   .00012"  1.5N or less  -
 .00005"/
0.001mm
 .5"/12.7mm  543-259 543-259B  ID-C112PE  .00012"  2.0N or less  Dust-Proof
 .00005"/
0.001mm
 .5"/12.7mm  543-256 543-256B  ID-C112CE  .00012"  0.4N - 0.7N
 Low measuring force
 .00005"/
0.001mm
 1"/25.4mm  - 543-452B  ID-C125EB  .00012"  1.8N or less  -
 .00005"/
0.001mm
 2"/50.8mm  - 543-462B  ID-C150EB  .00025"  2.3N or less  -
 .0001"/
0.001mm
 .5"/12.7mm  543-253 543-253B  ID-C112T  .00012"  1.5N or less  -
 .0001"
/0.001mm
 1"/25.4mm  - 543-253B  ID-C125TB  .00012"  1.8N or less  -
 .0001"/
0.001mm
 2"/50.8mm  - 543-463B  ID-C150TB  .00025"  2.3N or less  -
 .0005"/
0.01mm
 .5"/12.7mm  543-292 543-292B  ID-C1012HE  .0002"  1.5N or less  -
 .0005"/
0.01mm
 .5"/12.7mm  543-272 543-272B  ID-C1012E  .0008"  0.9N or less  -
 .0005"/
0.01mm
 .5"/12.7mm  543-279 543-279B  ID-C1012PE  .0008"  2.0N or less  Dust-Proof
 .0005"/
0.01mm
 .5"/12.7mm  543-276 543-276B  ID-C1012CE  .0008"  0.2N - 0.5N
 Low measuring force
 .0005"/
0.01mm
 1"/25.4mm  - 543-459B  ID-C1025HEB  .0002"  1.8N or less  -
 .0005"/
0.01mm
 1"/25.4mm  - 543-456B  ID-C1025EB  .0012"  1.8N or less  -
 .0005"/
0.01mm
 2"/50.8mm  - 543-466B  ID-C1050EB  .0016"  2.3N or less
 -
Stem Diameter Ø 8mm, M2.5 x 0.45 Thread
     Order Number
 Resolution Range
LugBack
FlatBack
Model
 Accuracy Measuring Force
Remarks
 .00005"/
0.001mm
 .5"/12.7mm  543-251 543-251B  ID-C112M  .00012"  1.5N or less  -
 .00005"/
0.001mm
 .5"/12.7mm  543-258 543-258B  ID-C112PM  .00012"  2.0N or less  Dust-Proof
 .00005"/
0.001mm
 .5"/12.7mm  543-255 543-255B  ID-C112CMB  .00012"  0.4N-0.7N  Low measuring force
 .00005"/
0.001mm
 1"/25.4mm  - 543-451B  ID-C125MB  .00012"  1.8N or less  -
 .00005"/
0.001mm
 2"/50.8mm  - 543-461B  ID-C150MB  .00025"  2.3N or less  -
 .0005"/
0.01mm
 .5"/12.7mm  543-291 543-291B  ID-C1012HM  .0002"  1.5N or less  -
 .0005"/
0.01mm
 .5"/12.7mm  543-271 543-271B  ID-C1012M  .0008"  0.9N or less  -
 .0005"/
0.01mm
 .5"/12.7mm  543-278 543-278B  ID-C1012PM  .0008"  2.0N or less  Dust-Proof
 .0005"/
0.01mm
 .5"/12.7mm  543-275 543-275B  ID-C1012CM  .0008"  0.2N-0.5N  Low measuring force
 .0005"/
0.01mm
 1"/25.4mm  - 543-458B  ID-C1025HMB  .0002"  1.8N or less  -
 .0005"/
0.01mm
 1"/25.4mm  - 543-455B  ID-C1025MB  .0012"  1.8N or less  -
 .0005"/
0.01mm
 2"/50.8mm  - 543-465B  ID-C1050MB  .0016"  2.3N or less
 -

   Features:
  • As compact as standard Series 2 dial indicators
  • Large, easy-to-read LCD
  • GO/±NG judgment can be performed by setting upper and lower tolerance limits. The judgment result (GO/±NG) can be displayed in full-size characters.
  • The positive/negative count resulting from the spindle's up/down movement can be toggled
  • Employing the ABSOLUTE linear encoder, the ID-C always displays the spindle "Absolute Position" from the origin at power-on. Also unlimited response speed eleminates over-speed errors.
  • The ID-C indicator face can be rotated 330° to an appropriate angle for easy reading.
  • With SPC data output

Technical Data
  • Accuracy: Refer to the list of specifications (excluding quantizing error)
  • Resolution: 0.01mm, 0.001mm, .0005"/0.01mm, .0001”/0.001mm or .00005”/0.001mm
  • Display: LCD
  • Length standard: ABSOLUTE electrostatic capacitance type linear encoder
  • Max. Response speed: Unlimited
  • Measuring force: Refer to the list of specifications
  • Battery: SR44 (1 pc.), 938882
  • Battery life: Approx. 5,000 hours under normal use
  • Dust/Water protection level: IP42 or IP53 (dust-proof type)
  • Function
  • Origin-set/Preset, Zeroset, GO/±NG judgment, Counting direction switching, Power ON/OFF, Data output,inch/mm
  • conversion (on inch/metric models only)
  • Alarm: Low voltage, Counting value composition error, Over-flow error, Tolerance limit setting error
